A two-storey residence with a contemporary facade, presented with its architectural visualizations and complete drawing set.
Project overview
A Contemporary Two-Storey Residence
A residential project with ground and first floors and a contemporary stone and marble facade.

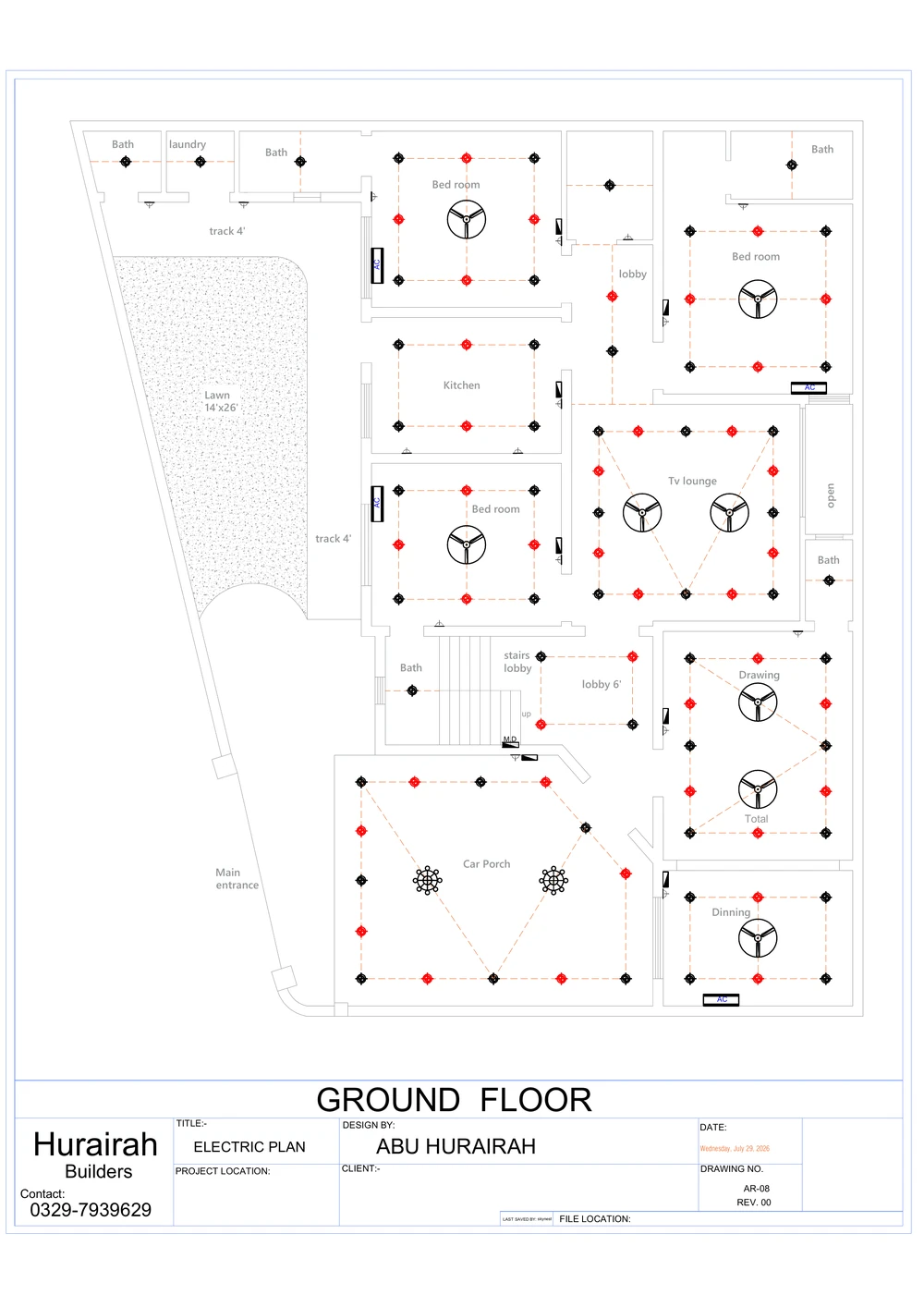

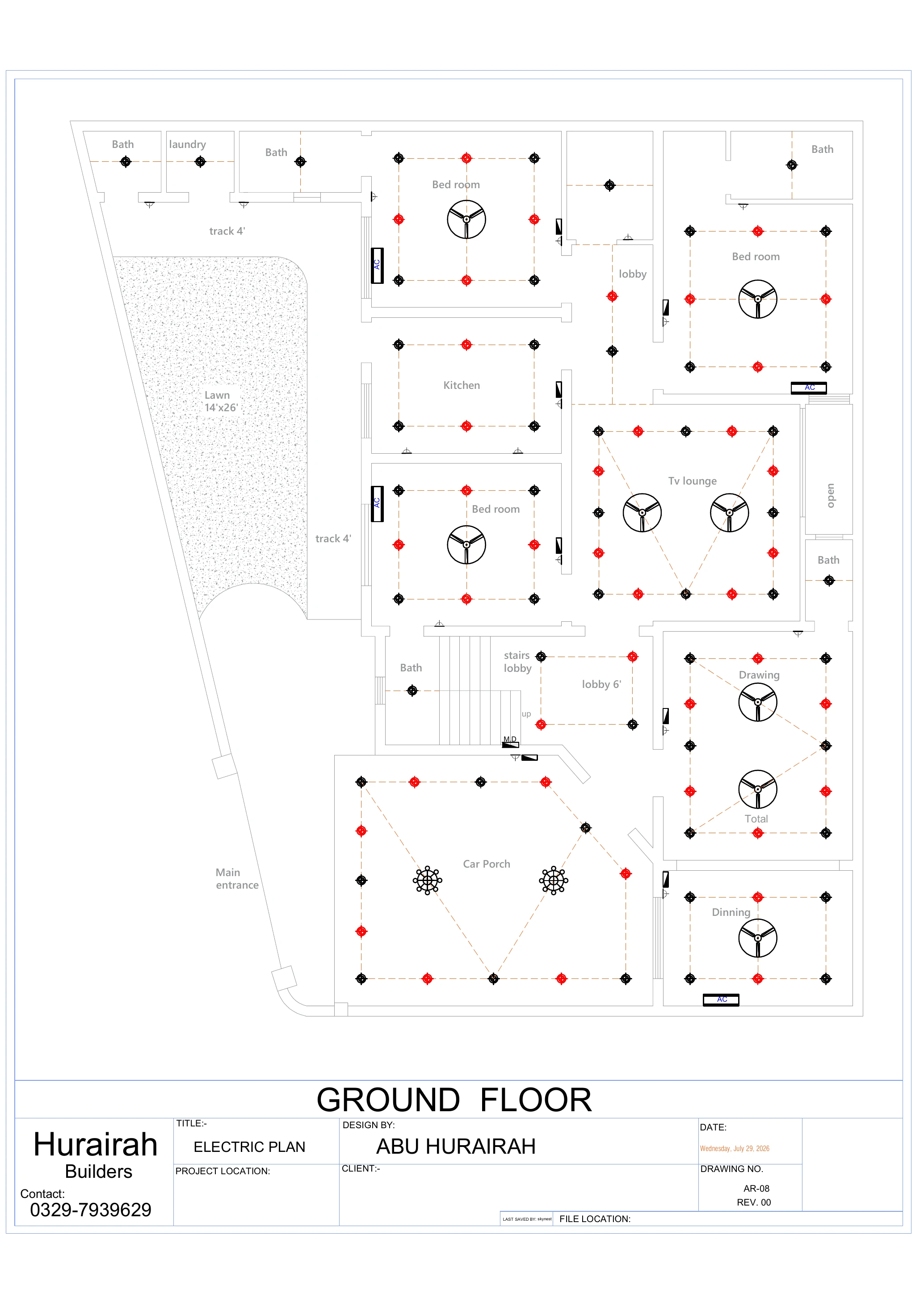

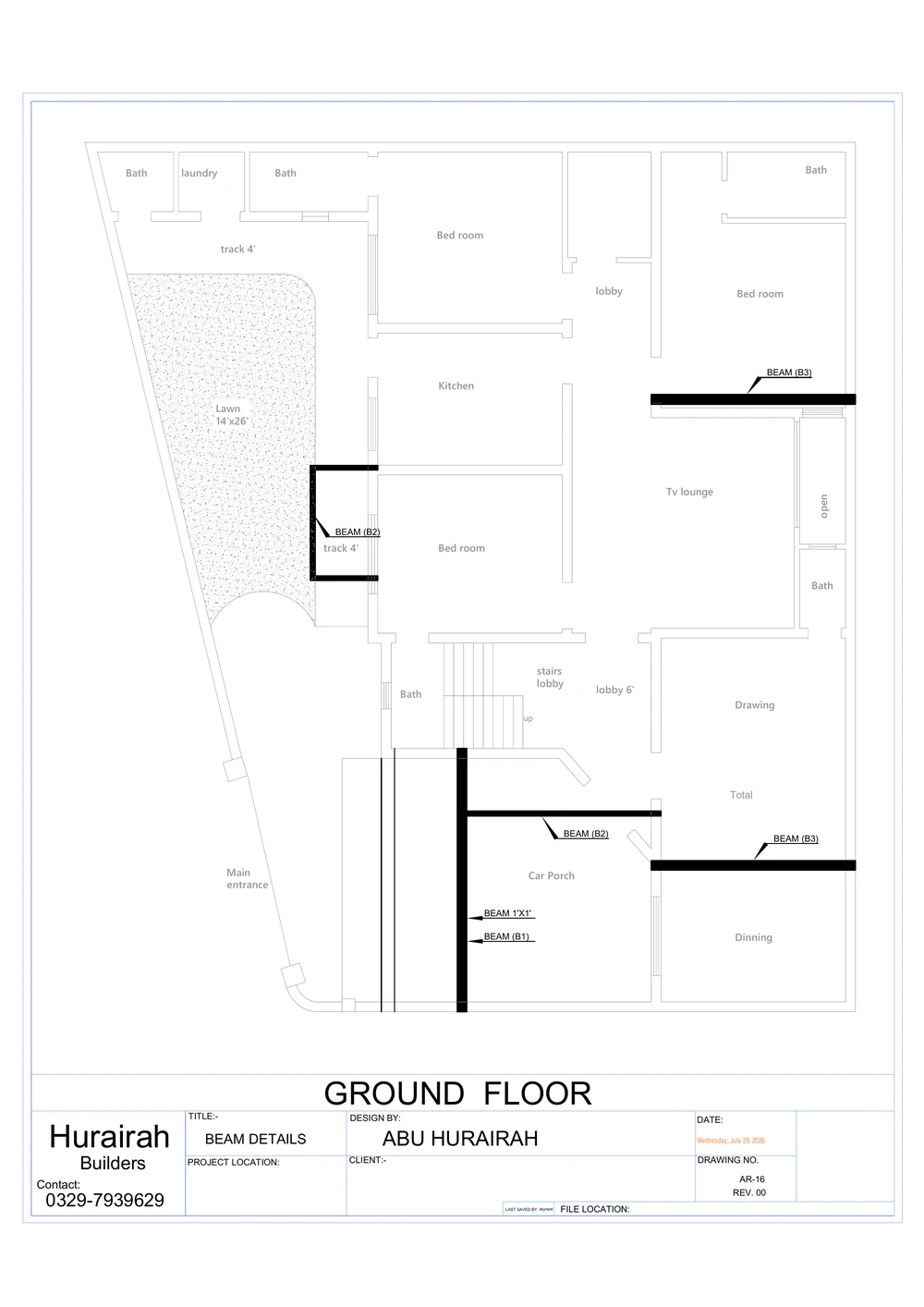

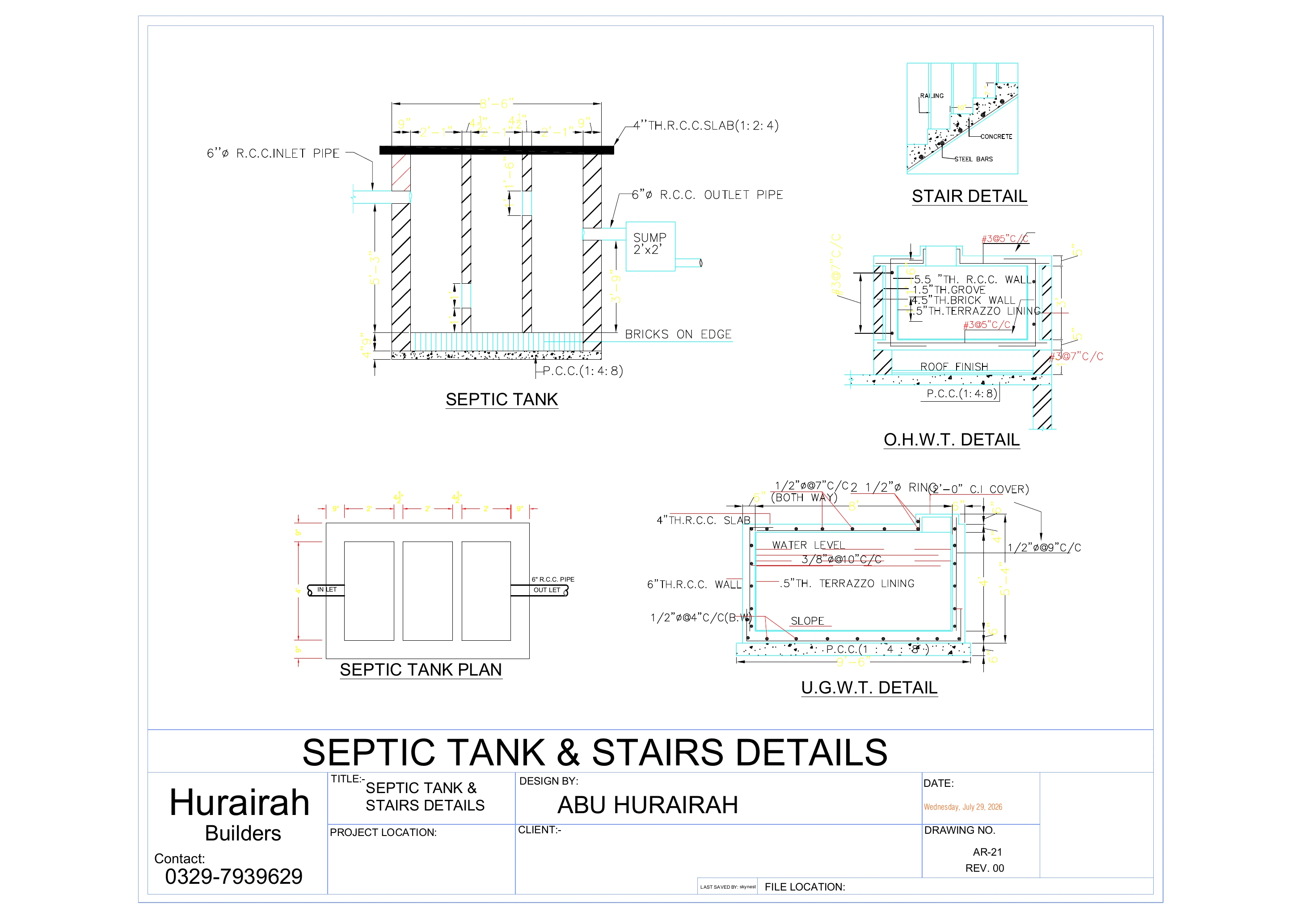

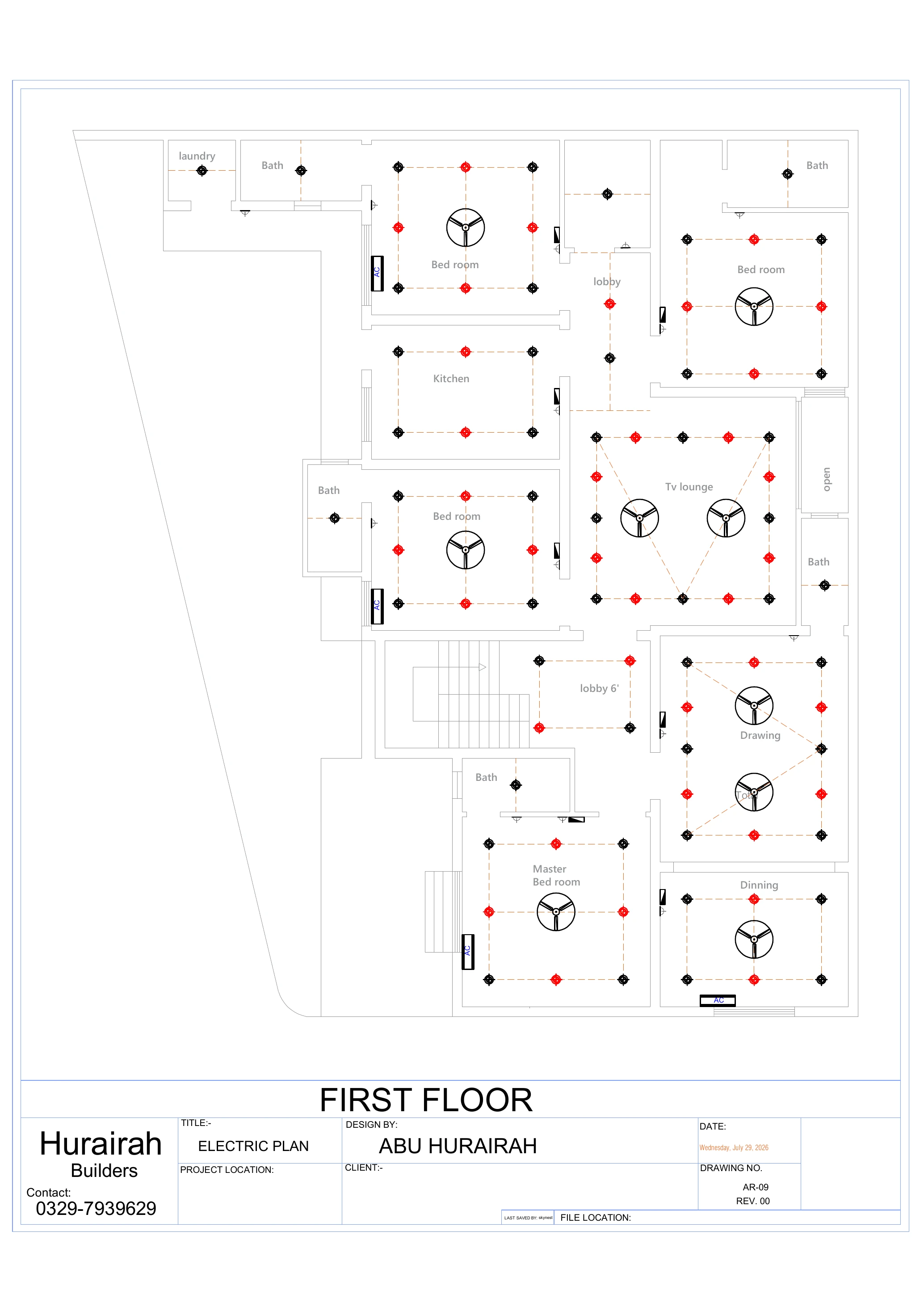

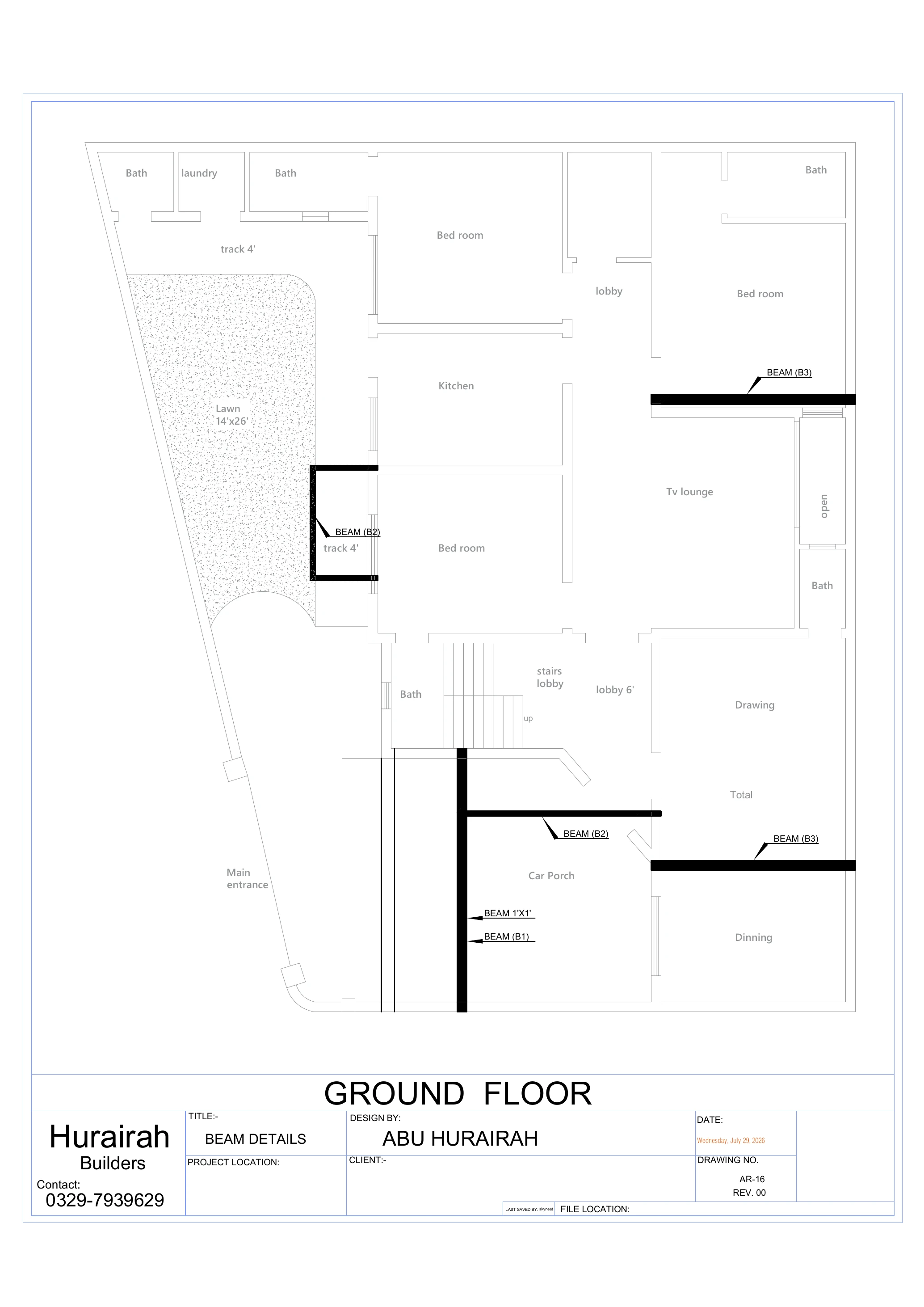

The drawing set includes three front elevation visualizations, ground and first floor plans with and without dimensions, electrical and sewerage plans, door and window plans, beam details, a section at A-A, elevation drawings and construction details for lintels, the septic tank, stairs and foundations, presented below as supplied.
Project visualization
Front Elevation Views
Three architectural visualizations of the front elevation, each shown with its original drawing title block.
Front Elevation, View 1
Front Elevation, View 2
Front Elevation, View 3
Architectural drawings
Drawings Gallery
Select any drawing to view it full screen. Use the arrow keys or buttons to move between drawings, and Esc to close.
Architectural plans11 drawings
-

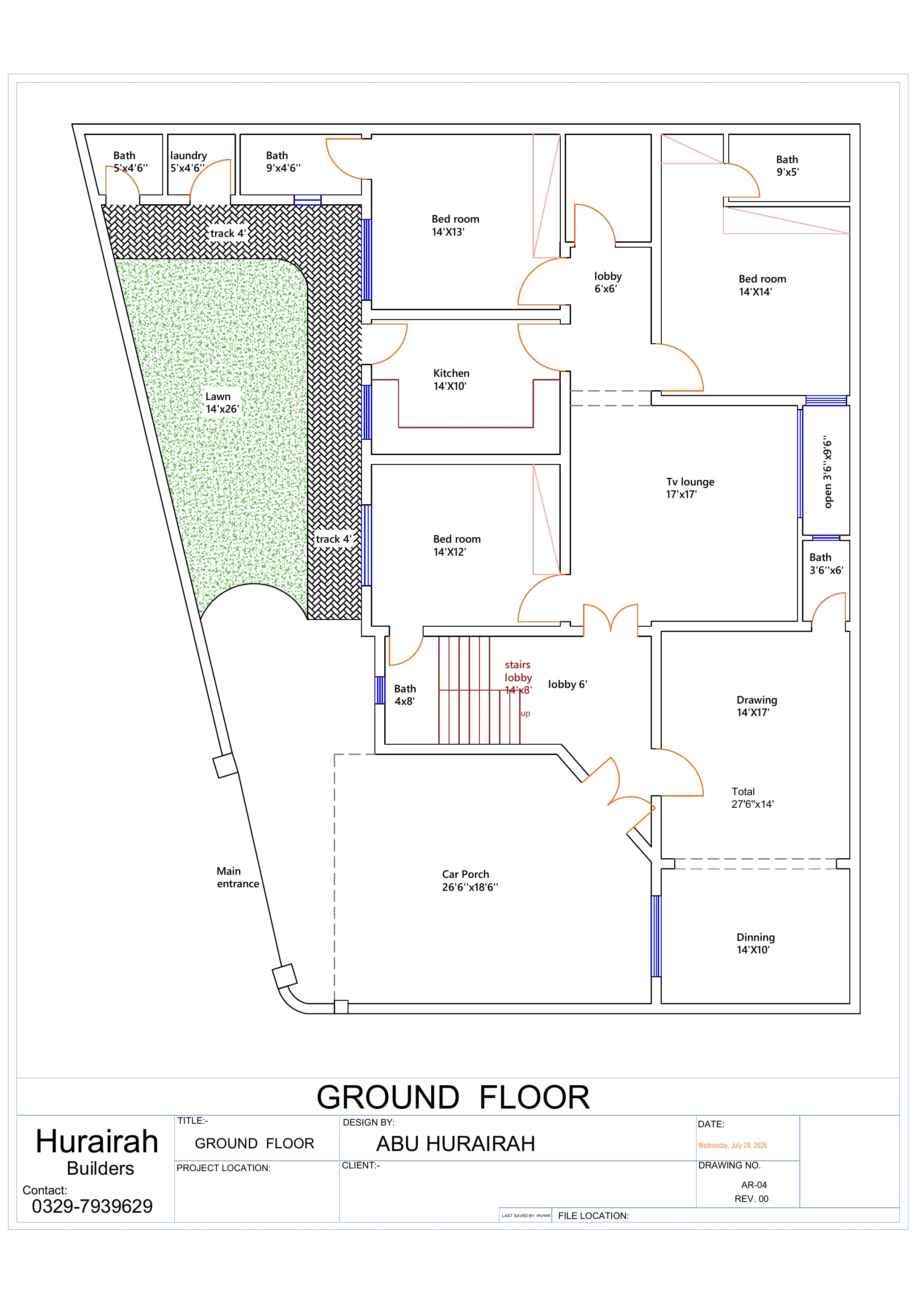

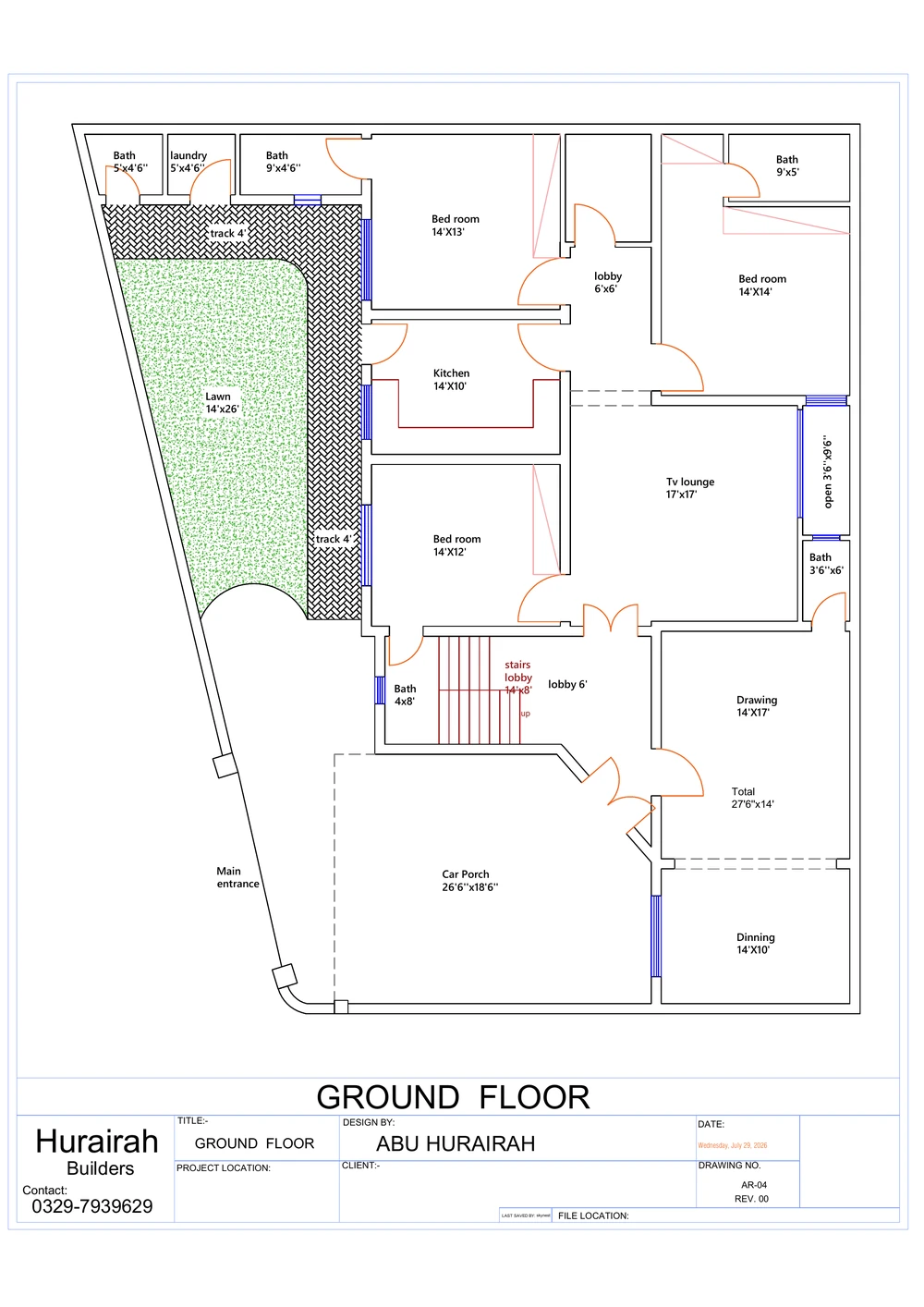

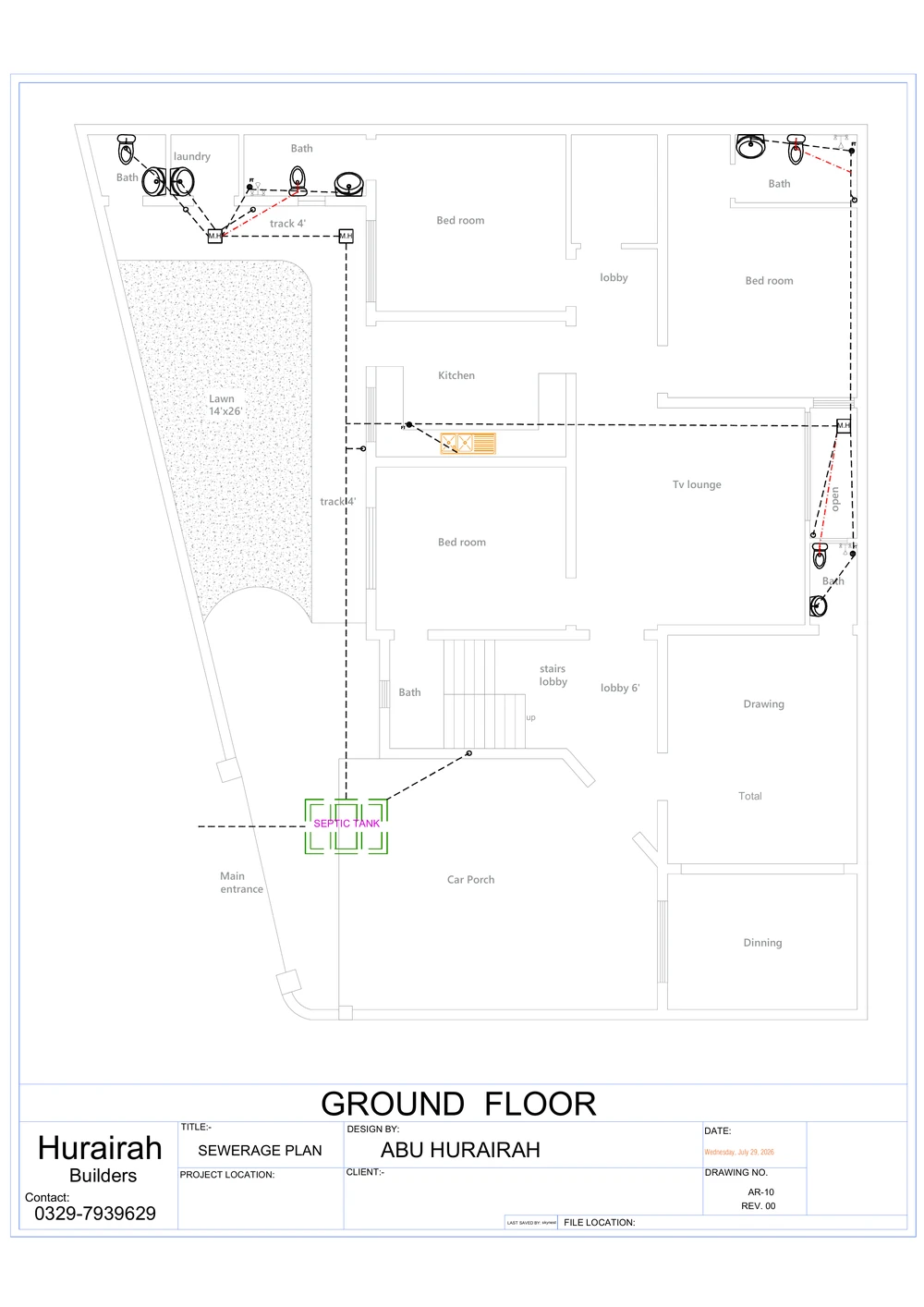

01Ground Floor Plan
View drawing -

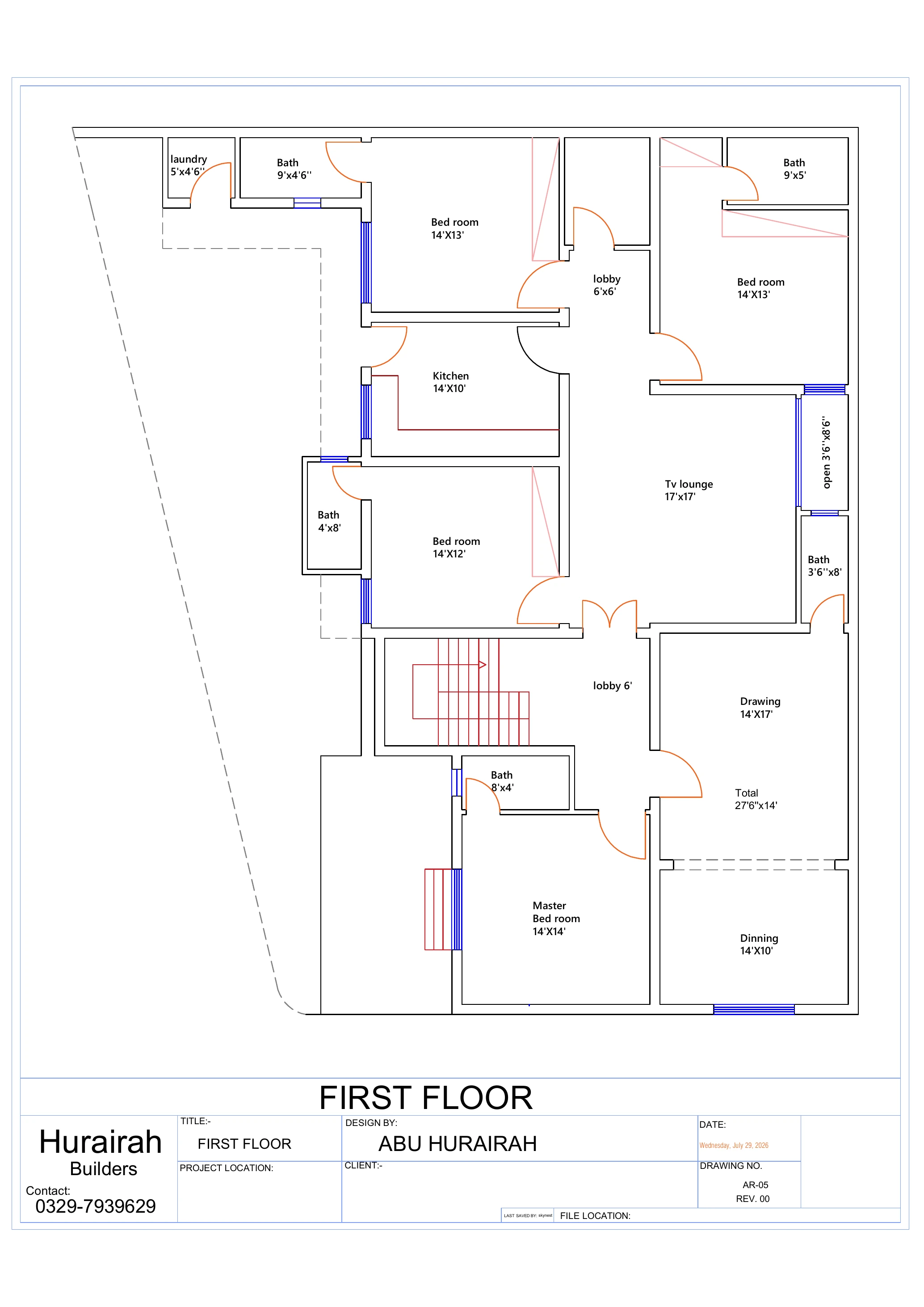

02First Floor Plan
View drawing -

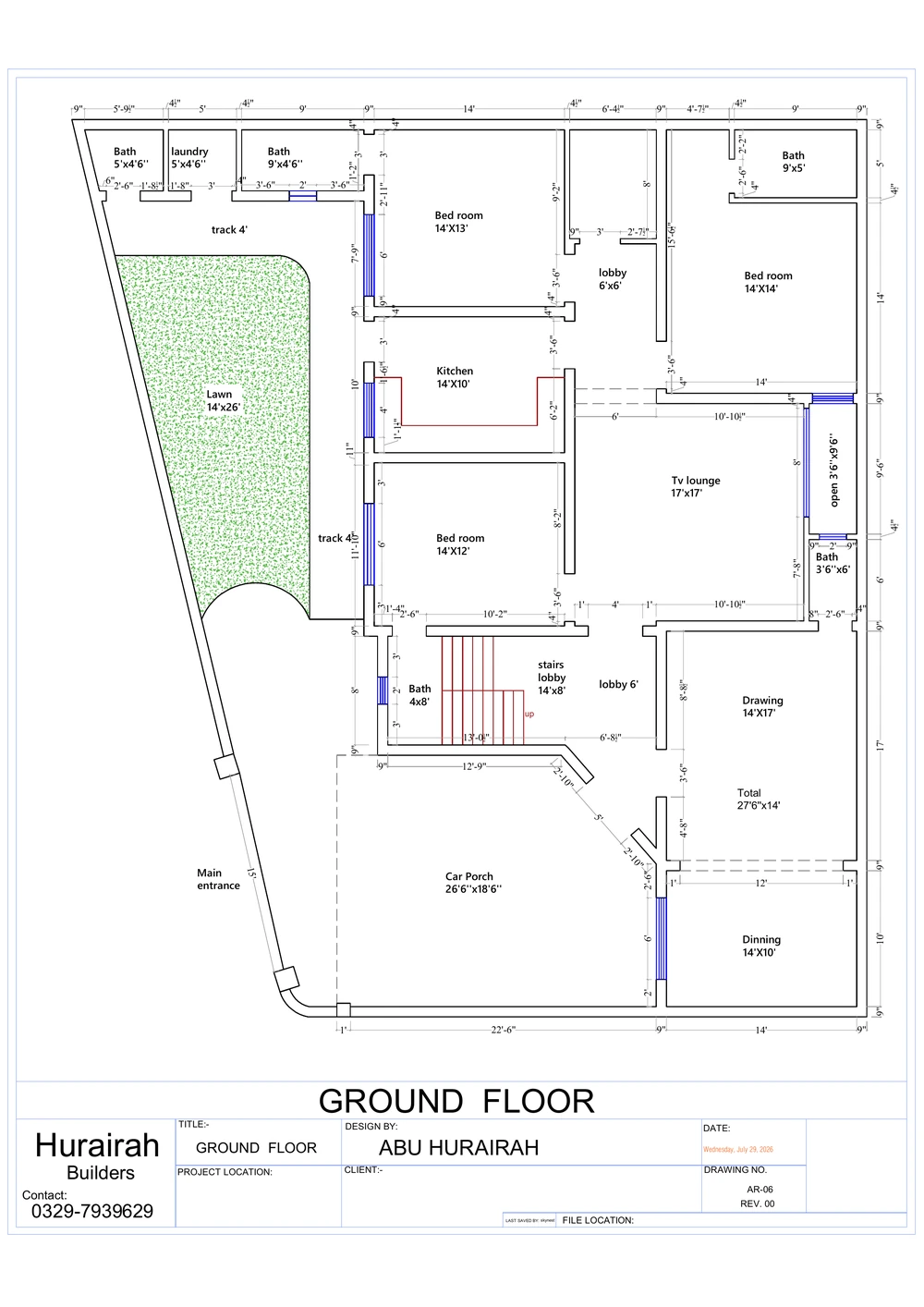

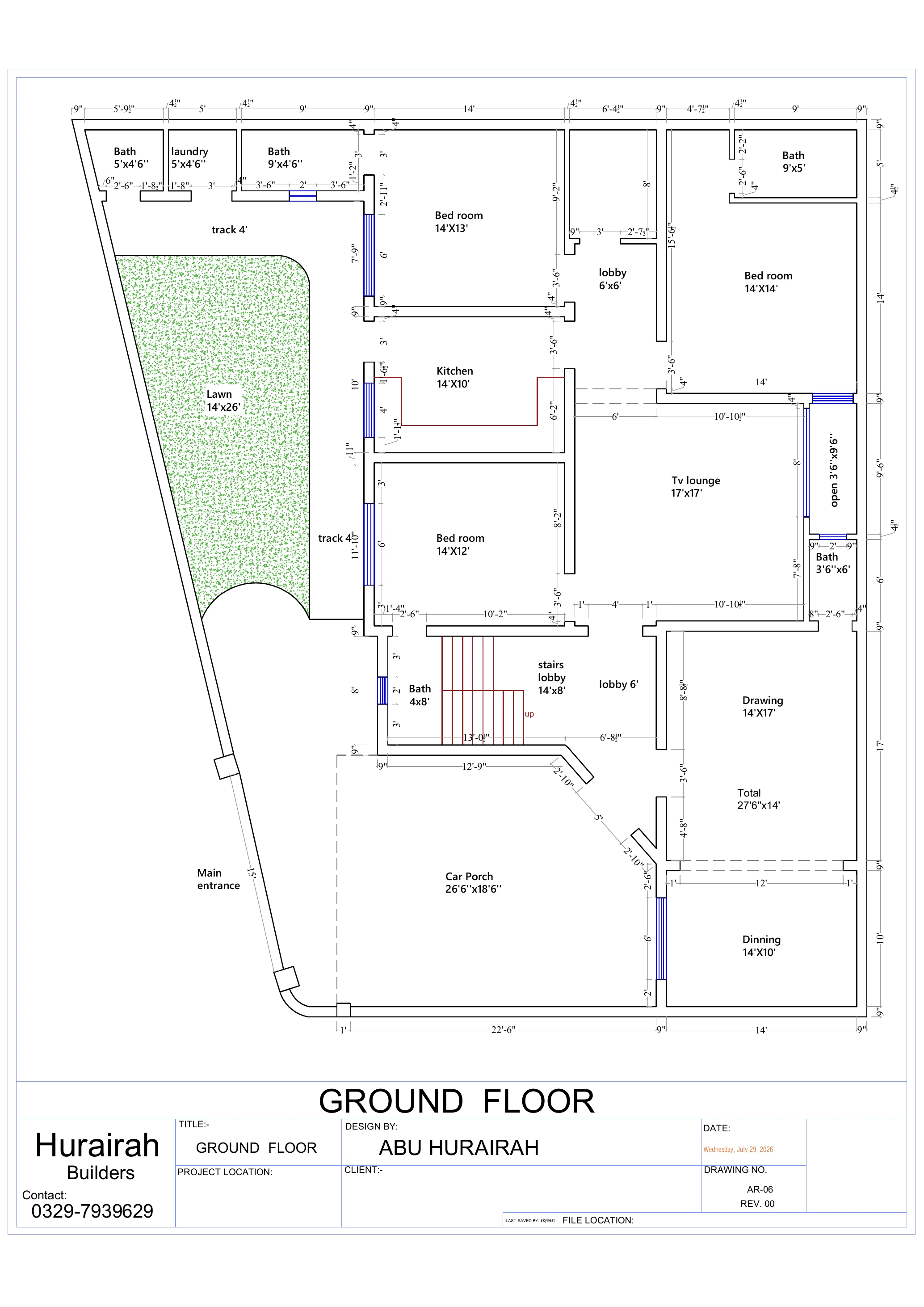

03Ground Floor Plan with Dimensions
View drawing -

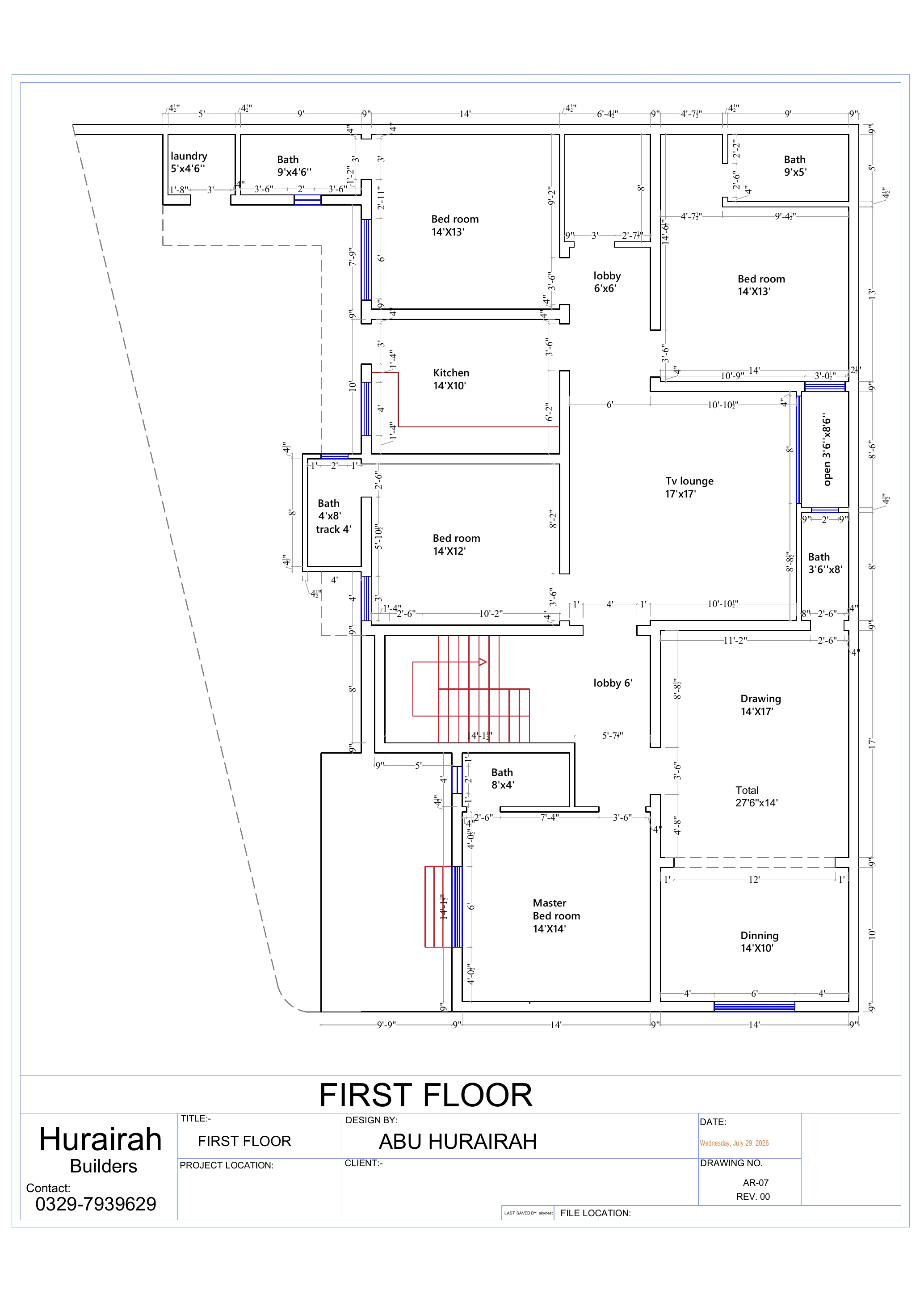

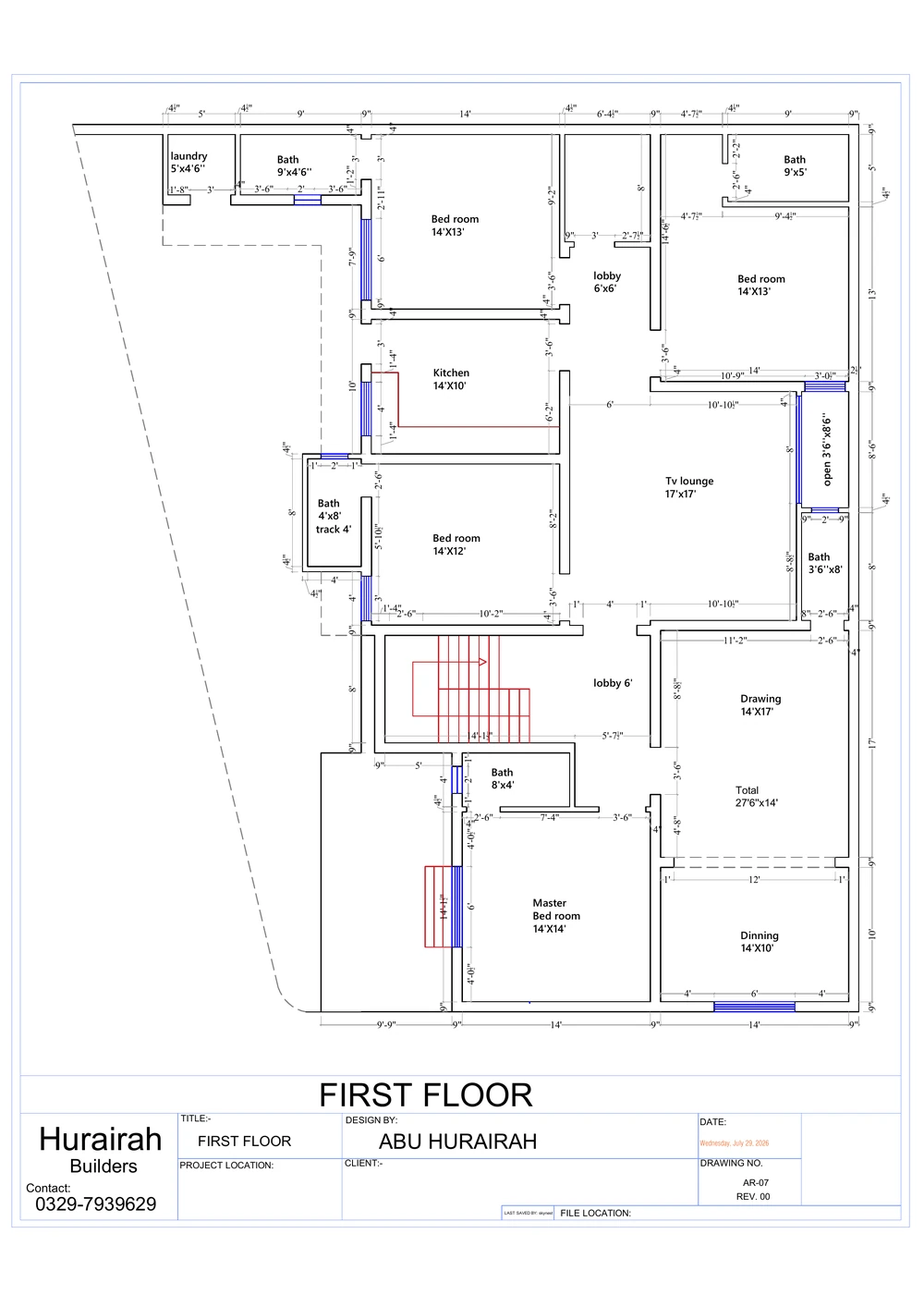

04First Floor Plan with Dimensions
View drawing -

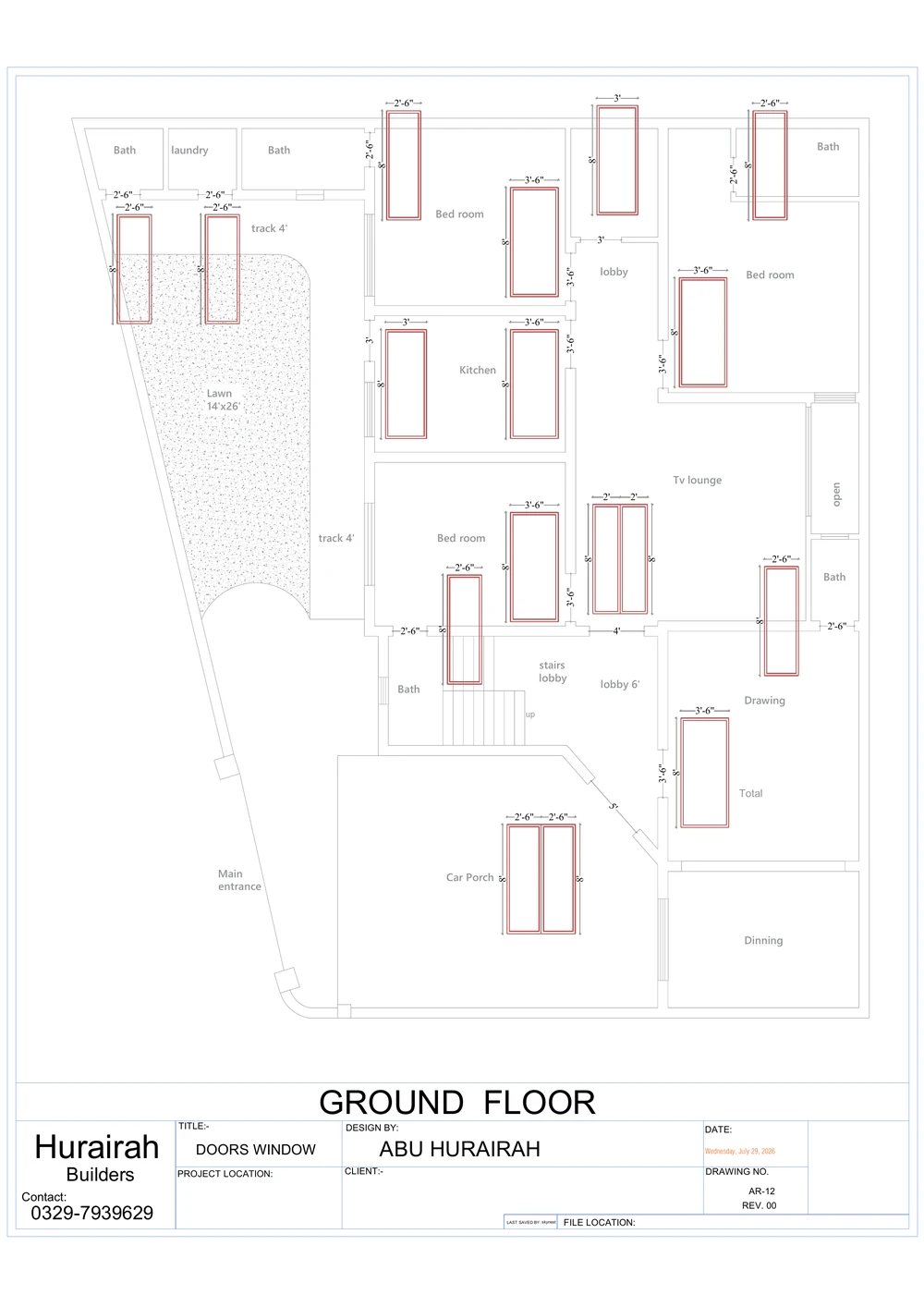

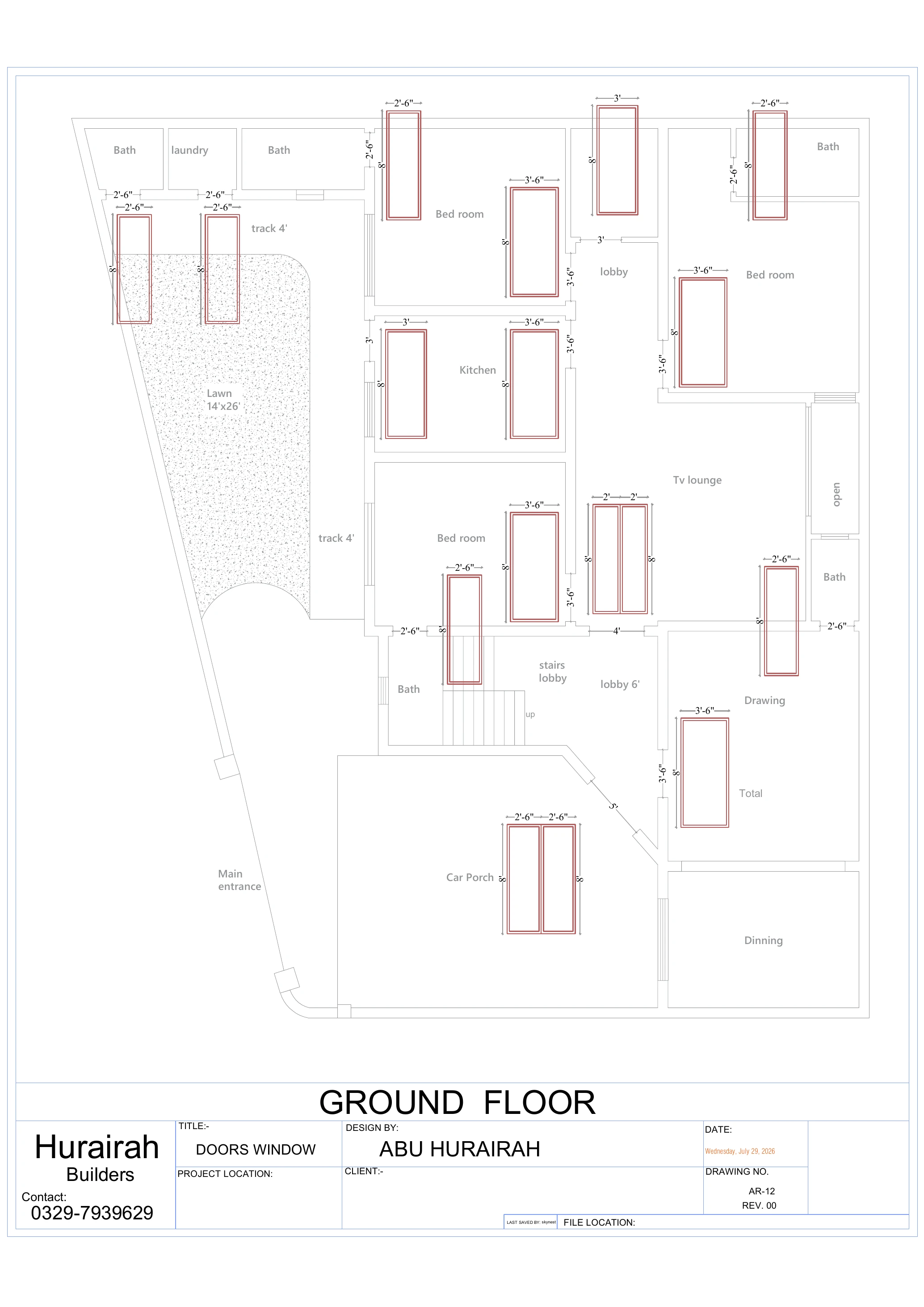

05Ground Floor Doors & Windows
View drawing -

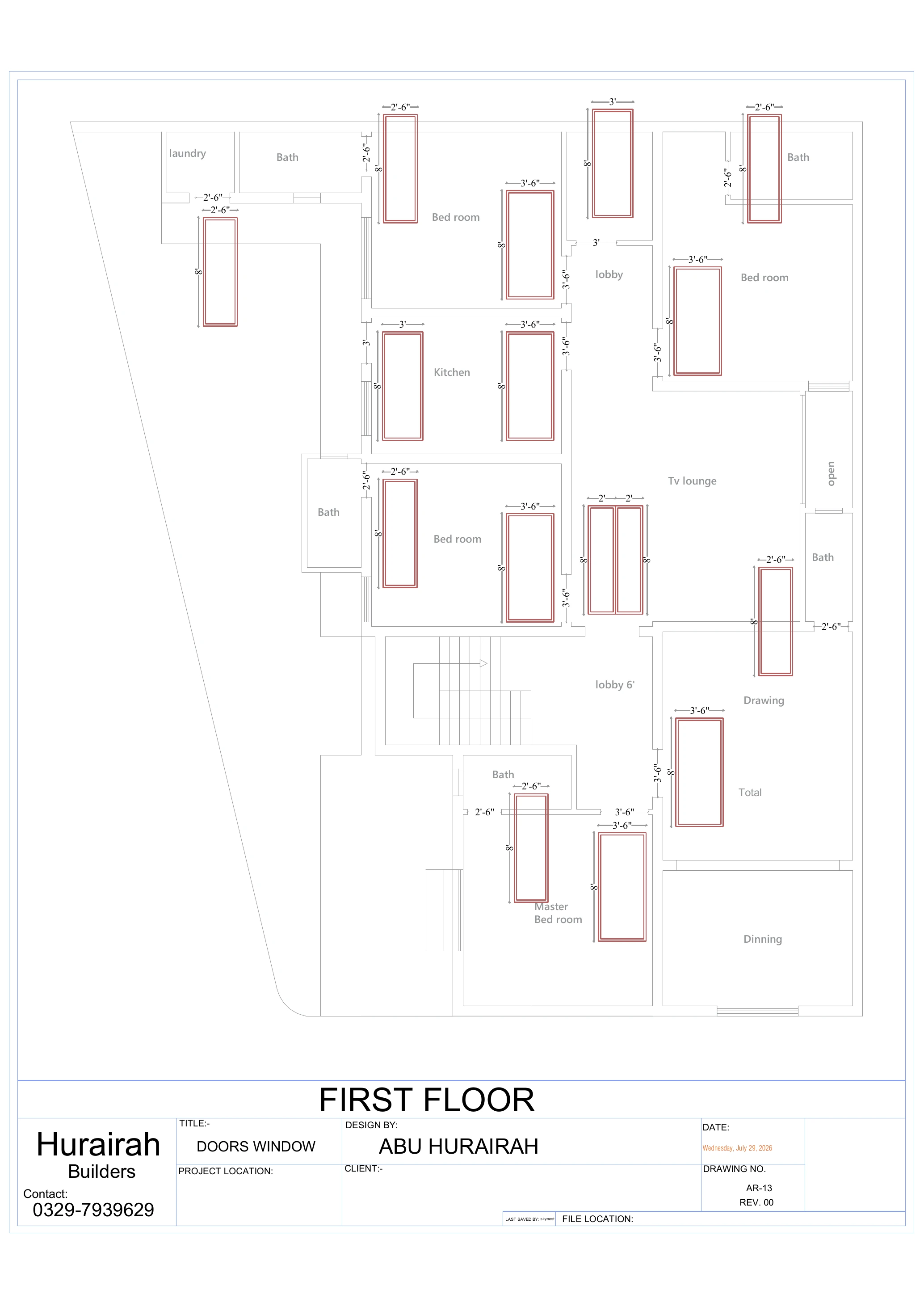

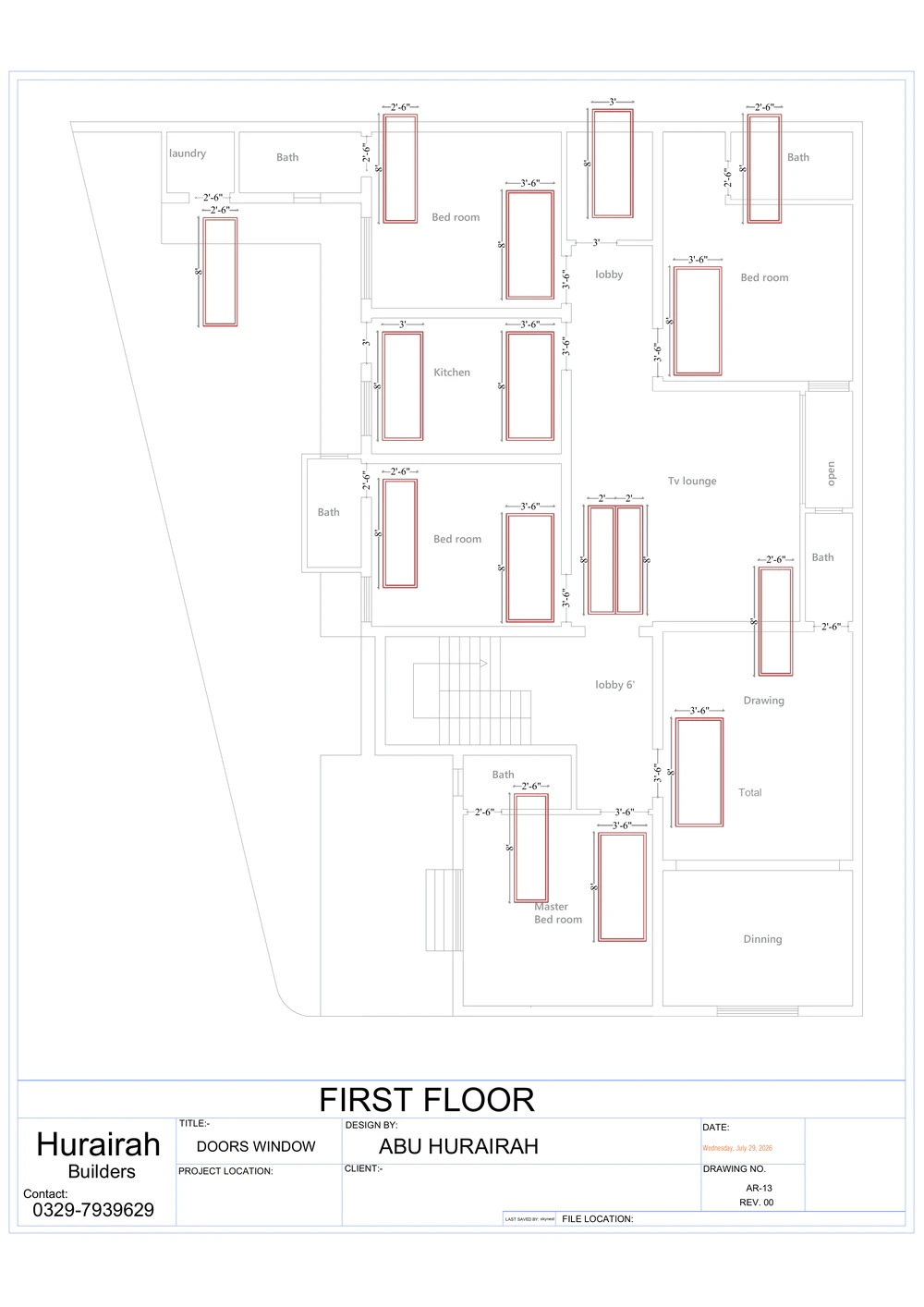

06First Floor Doors & Windows
View drawing -

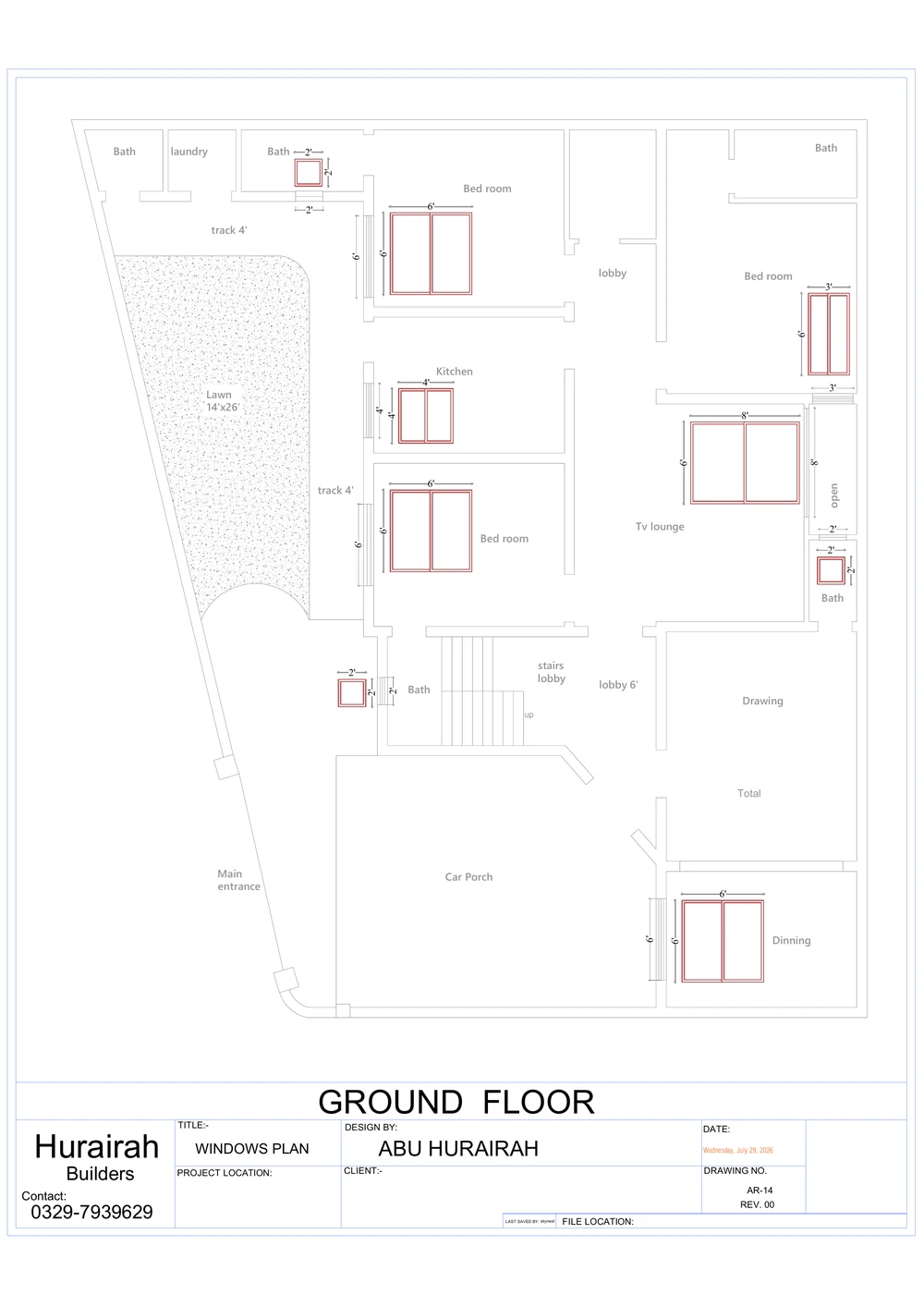

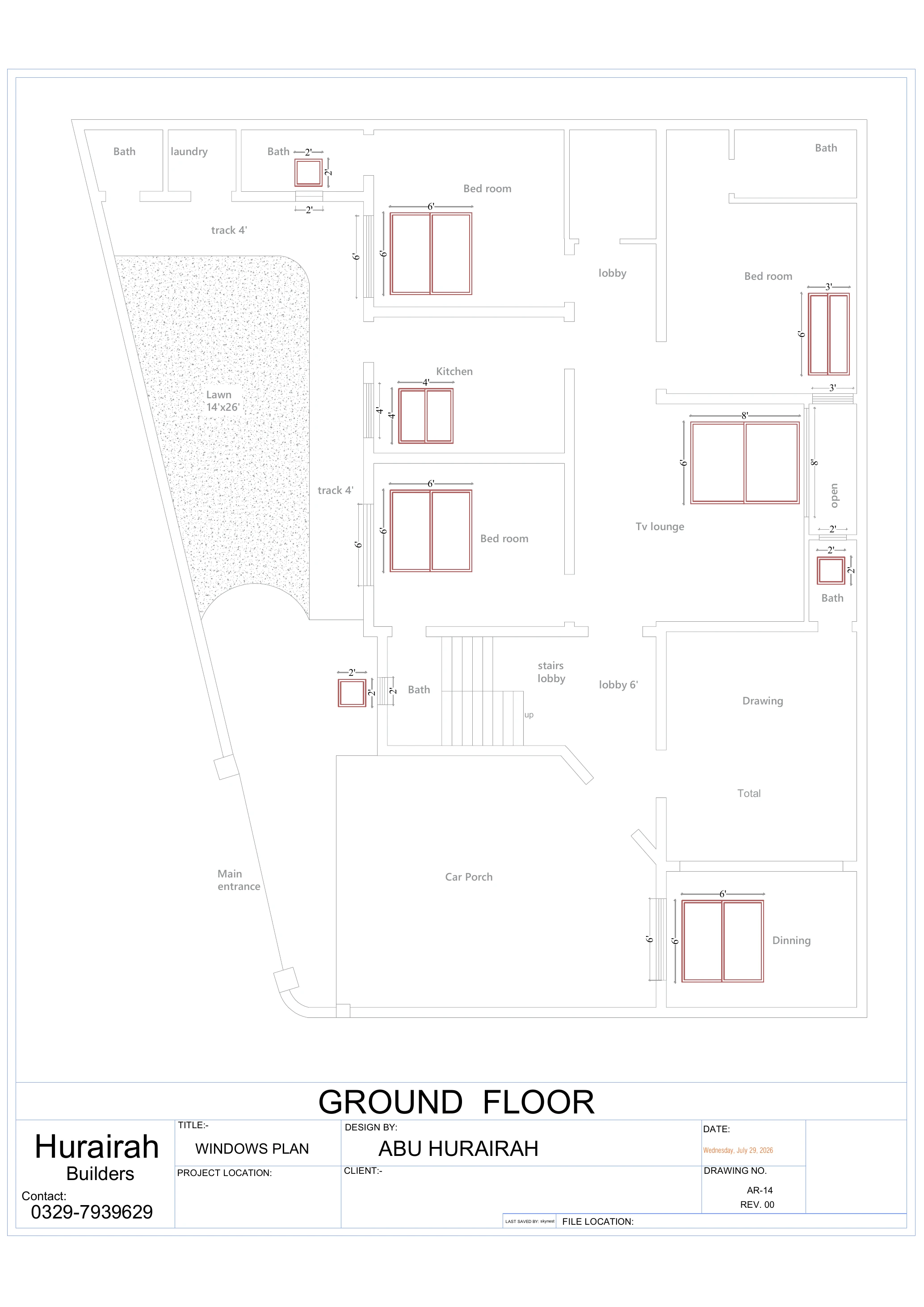

07Ground Floor Windows Plan
View drawing -

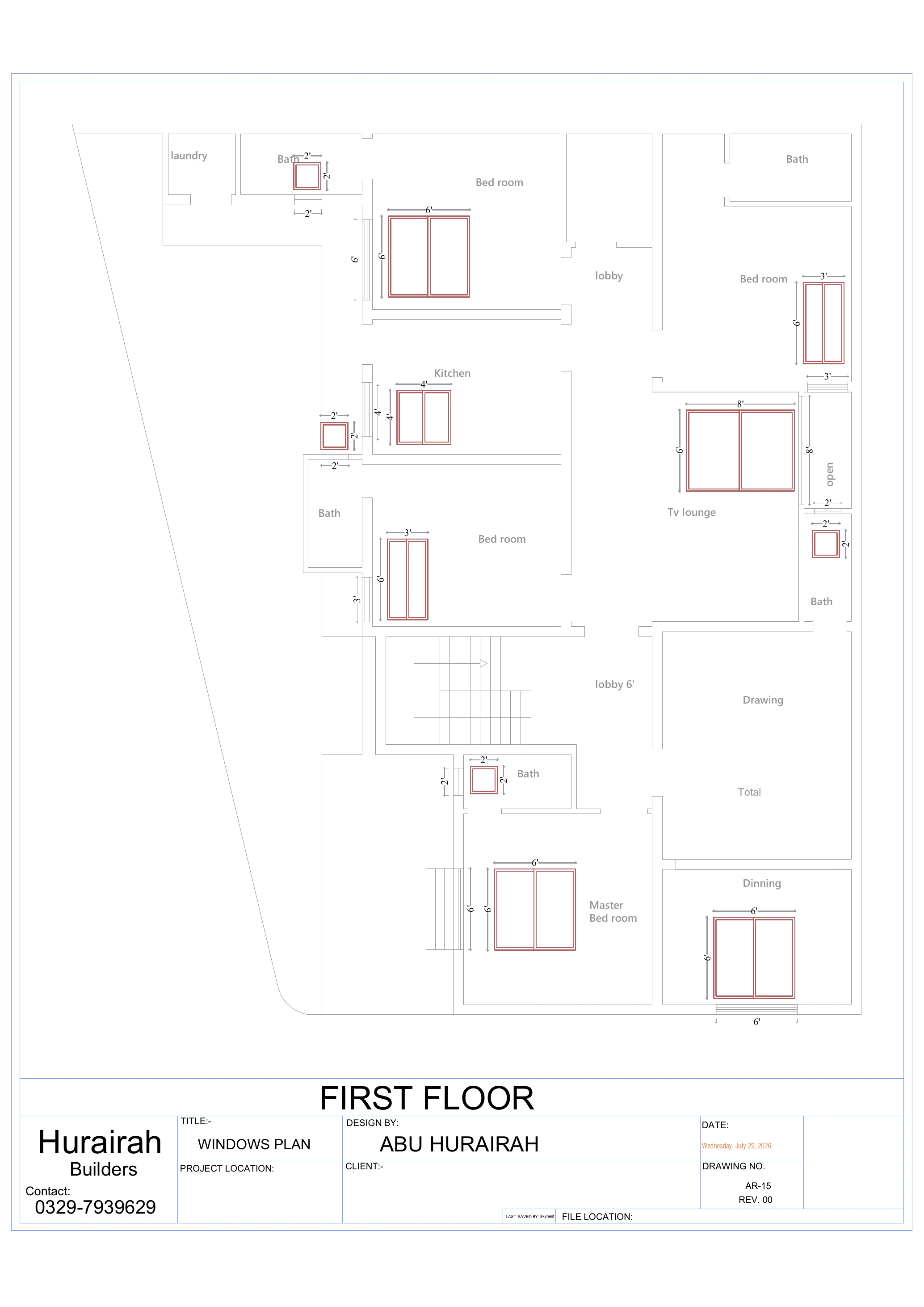

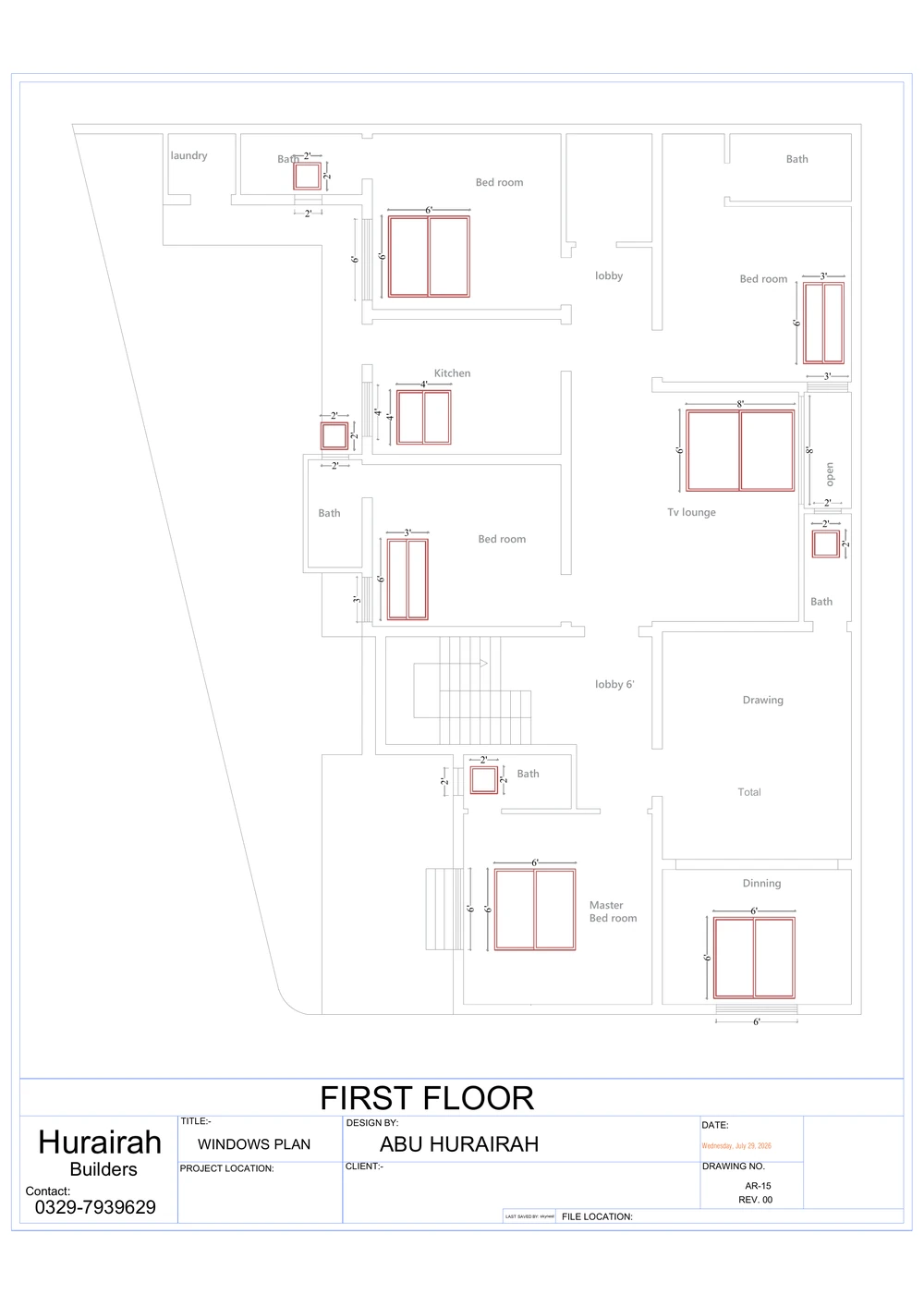

08First Floor Windows Plan
View drawing -

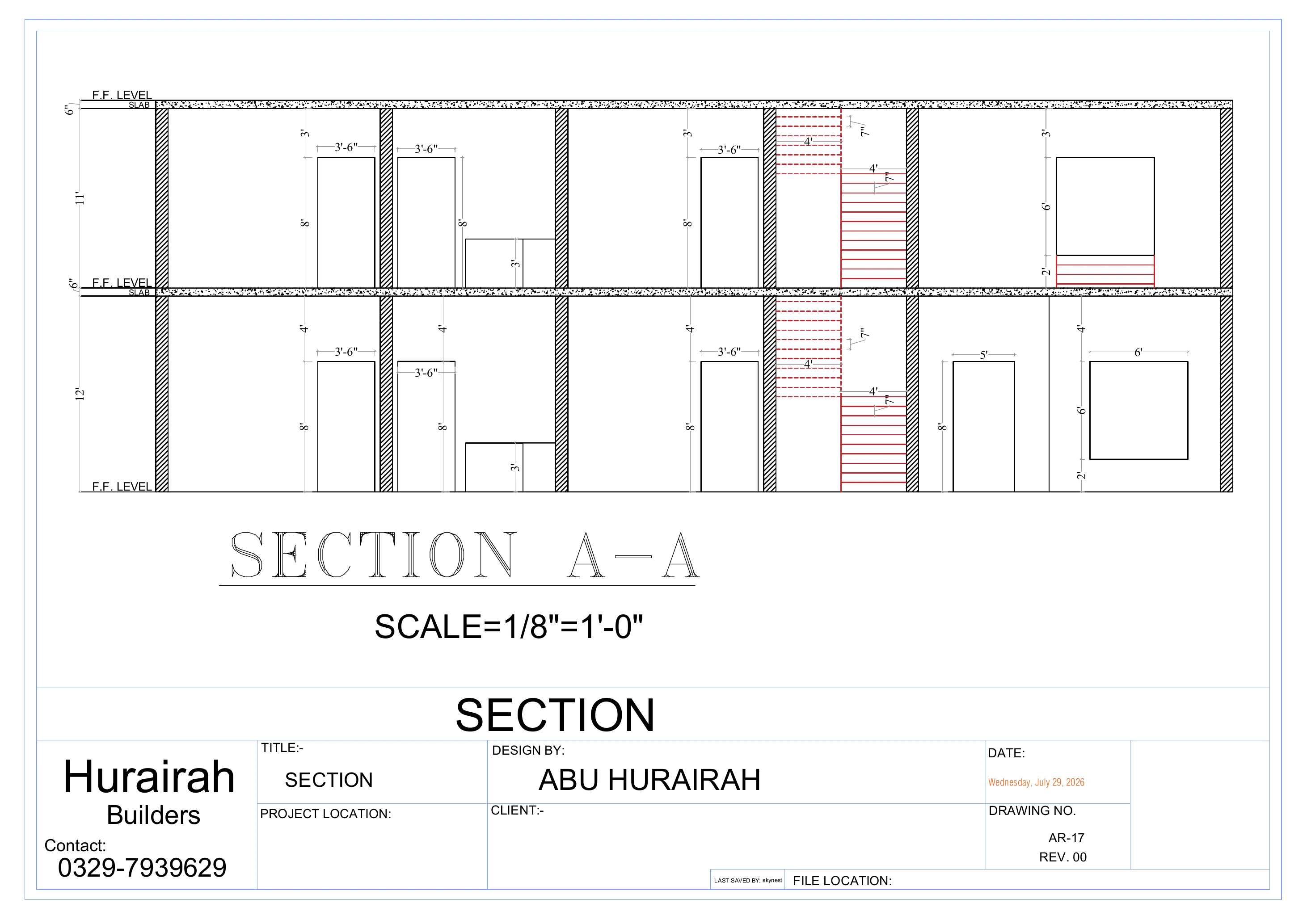

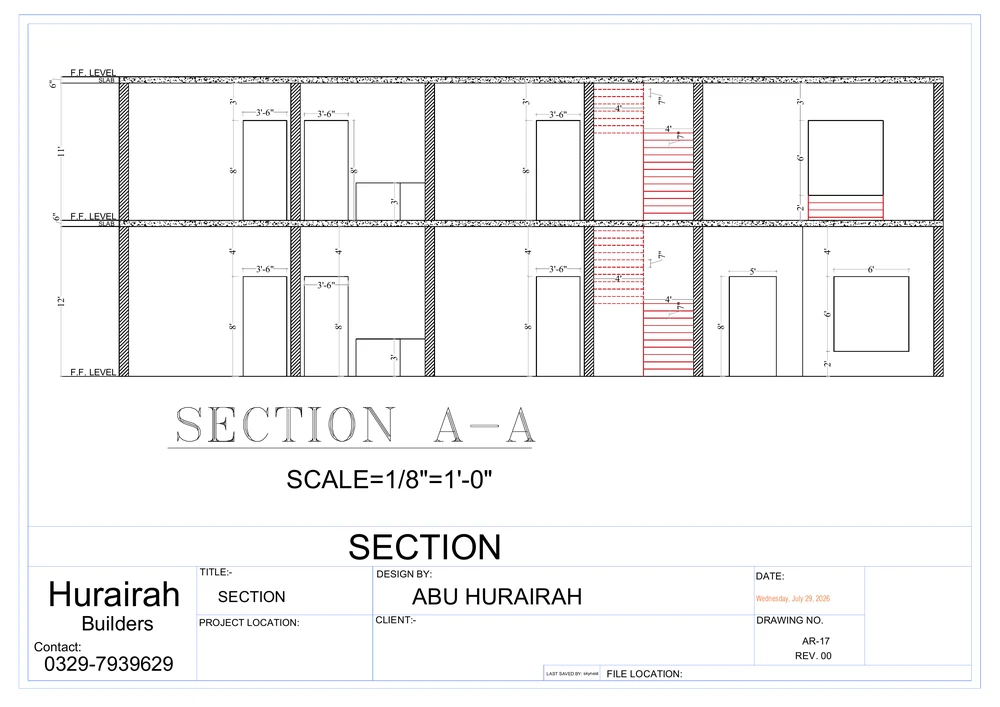

09Section A-A
View drawing -

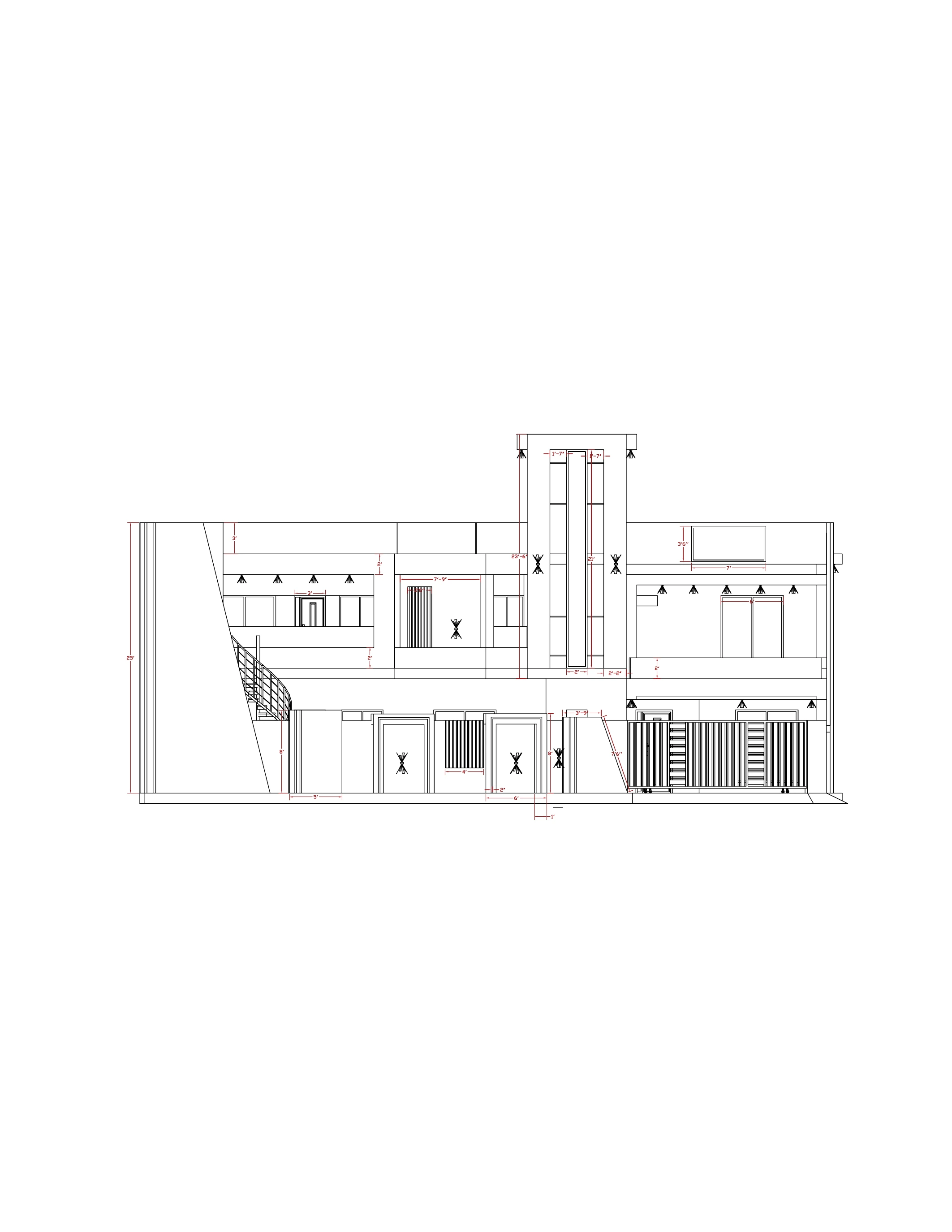

10Elevation Drawing 1
View drawing -

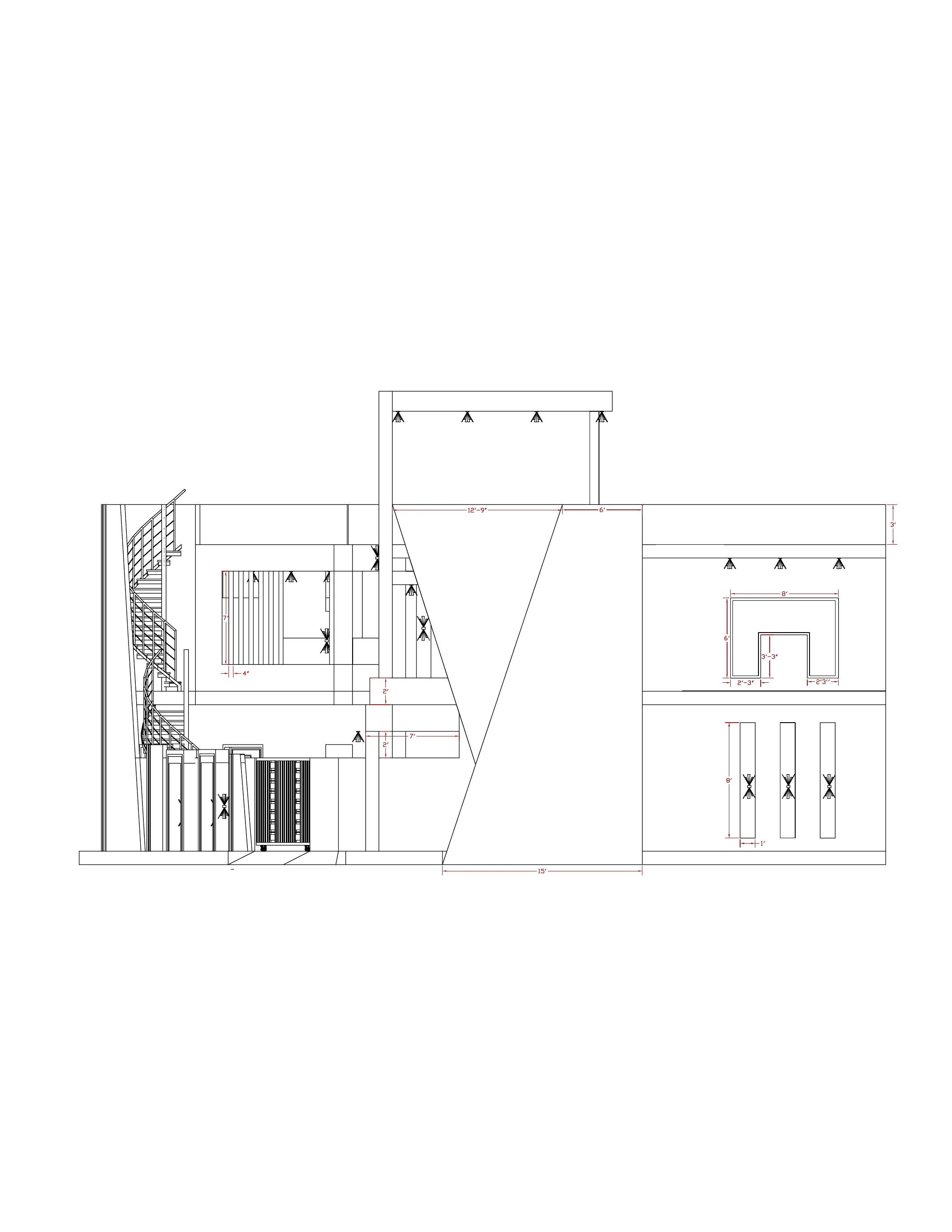

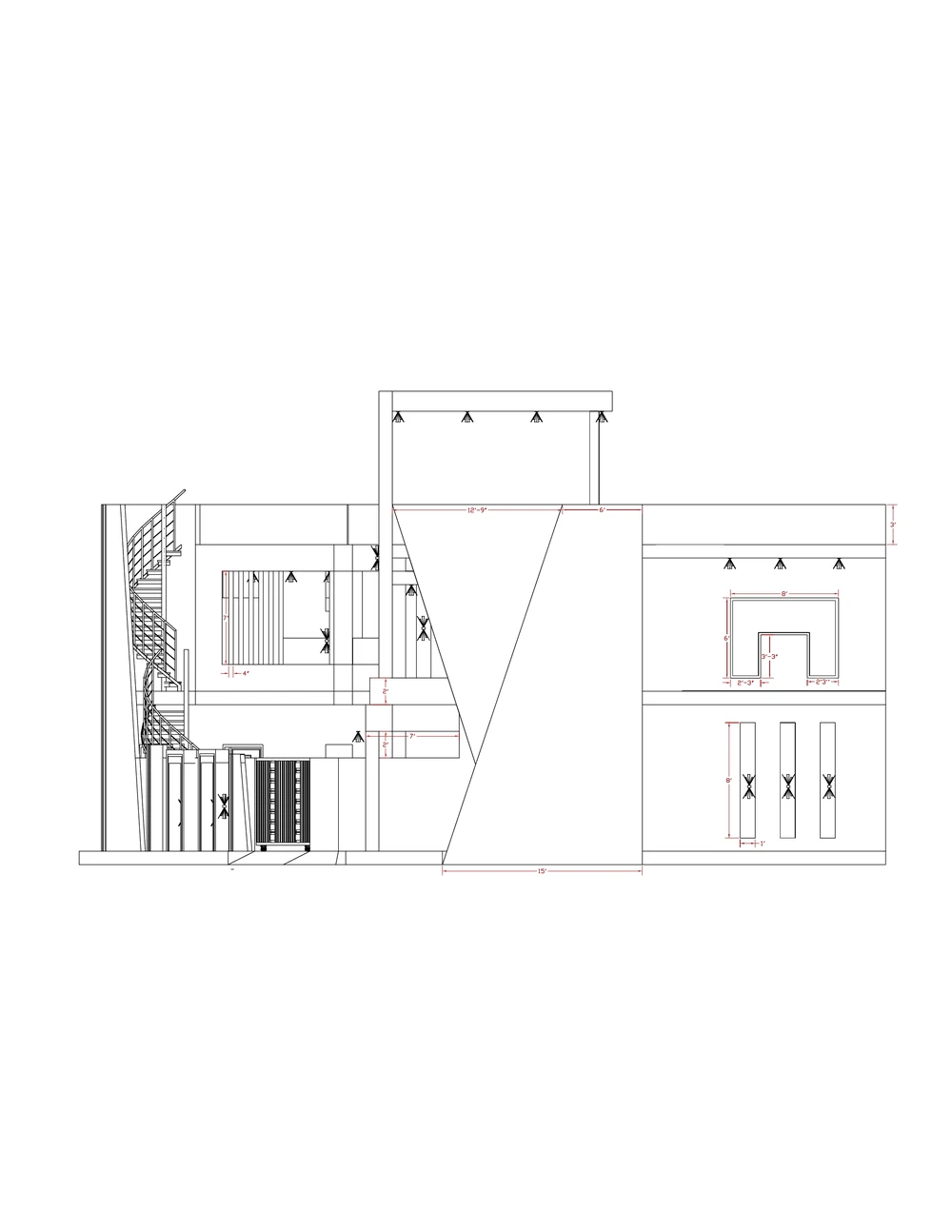

11Elevation Drawing 2
View drawing

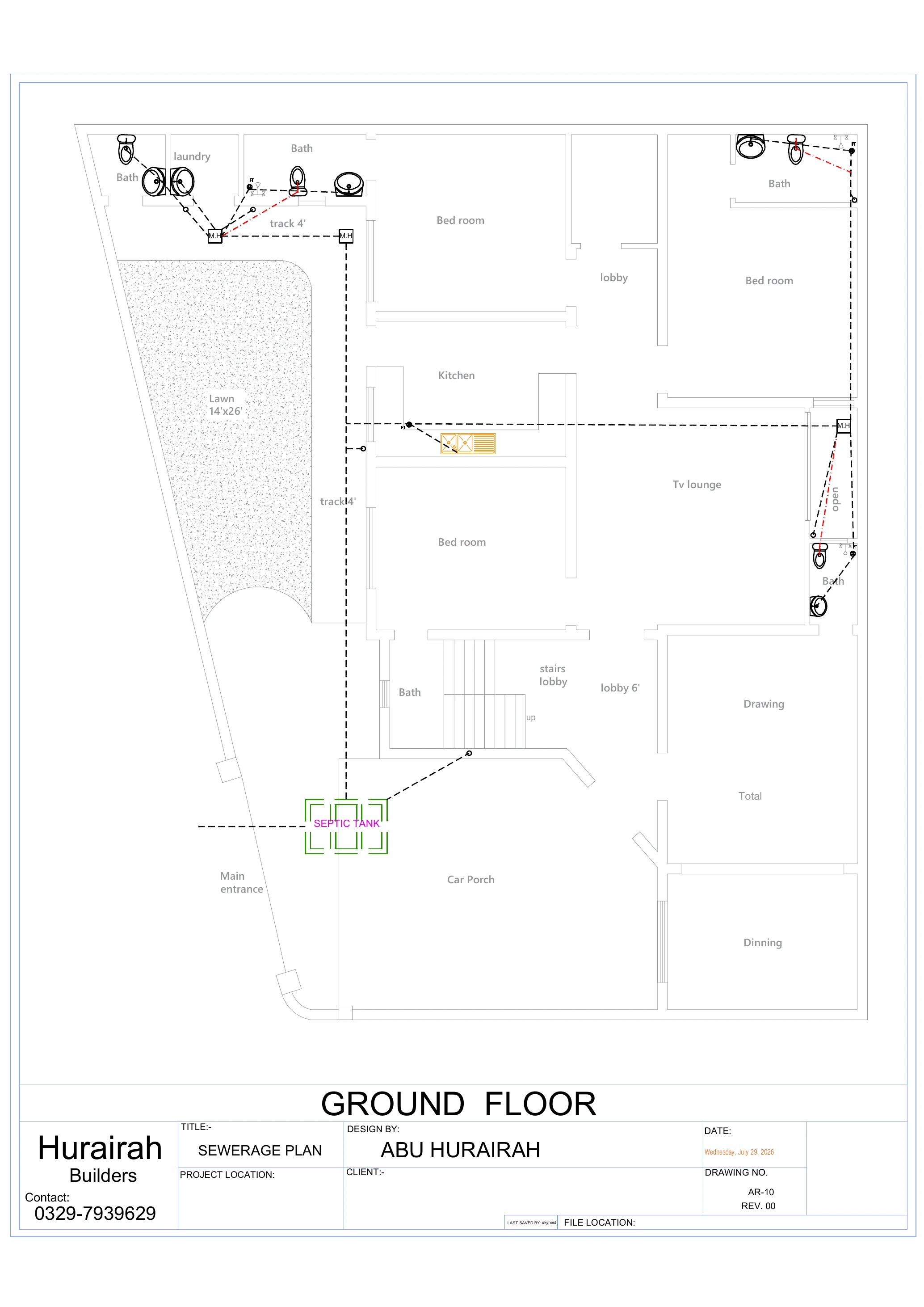

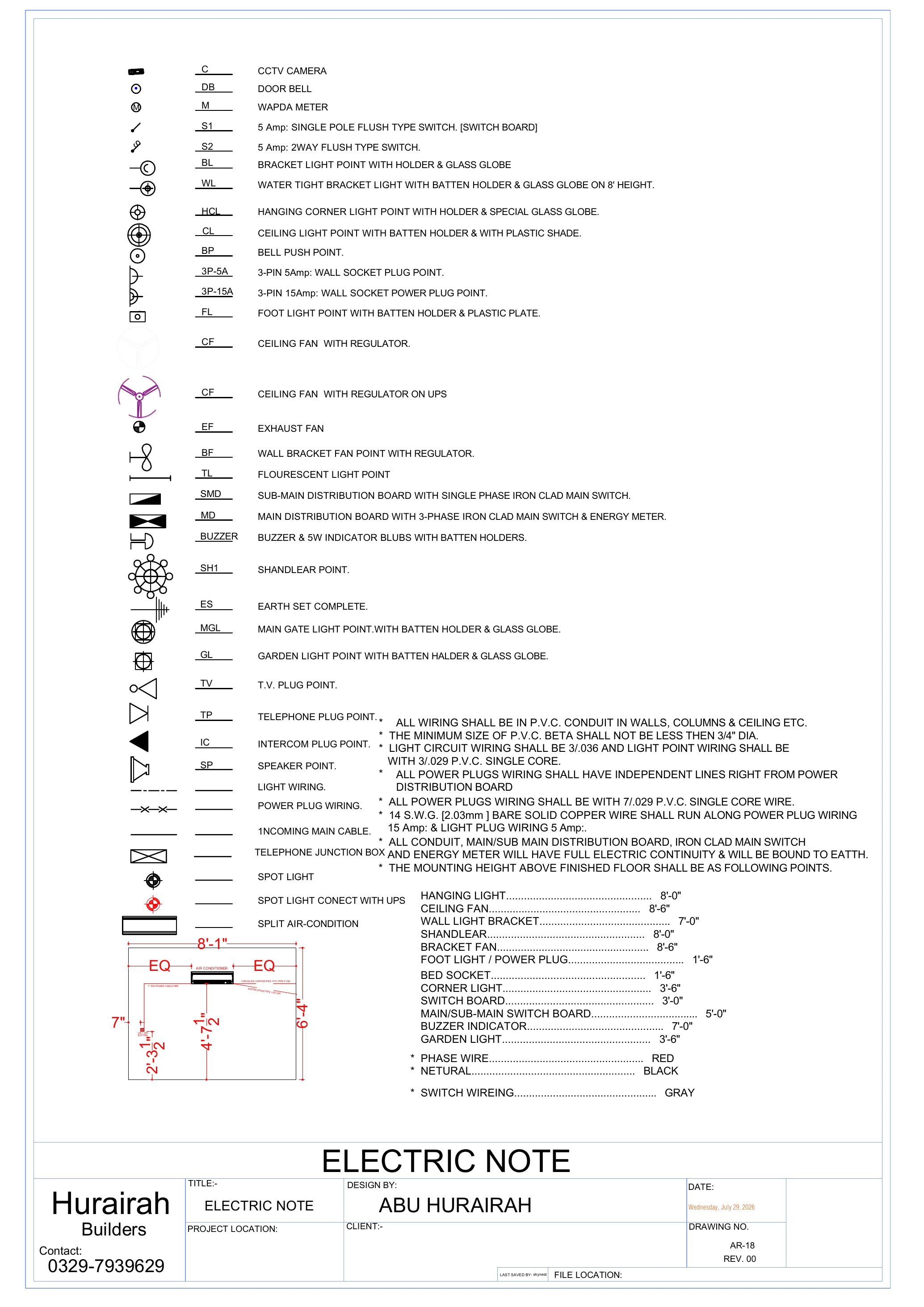

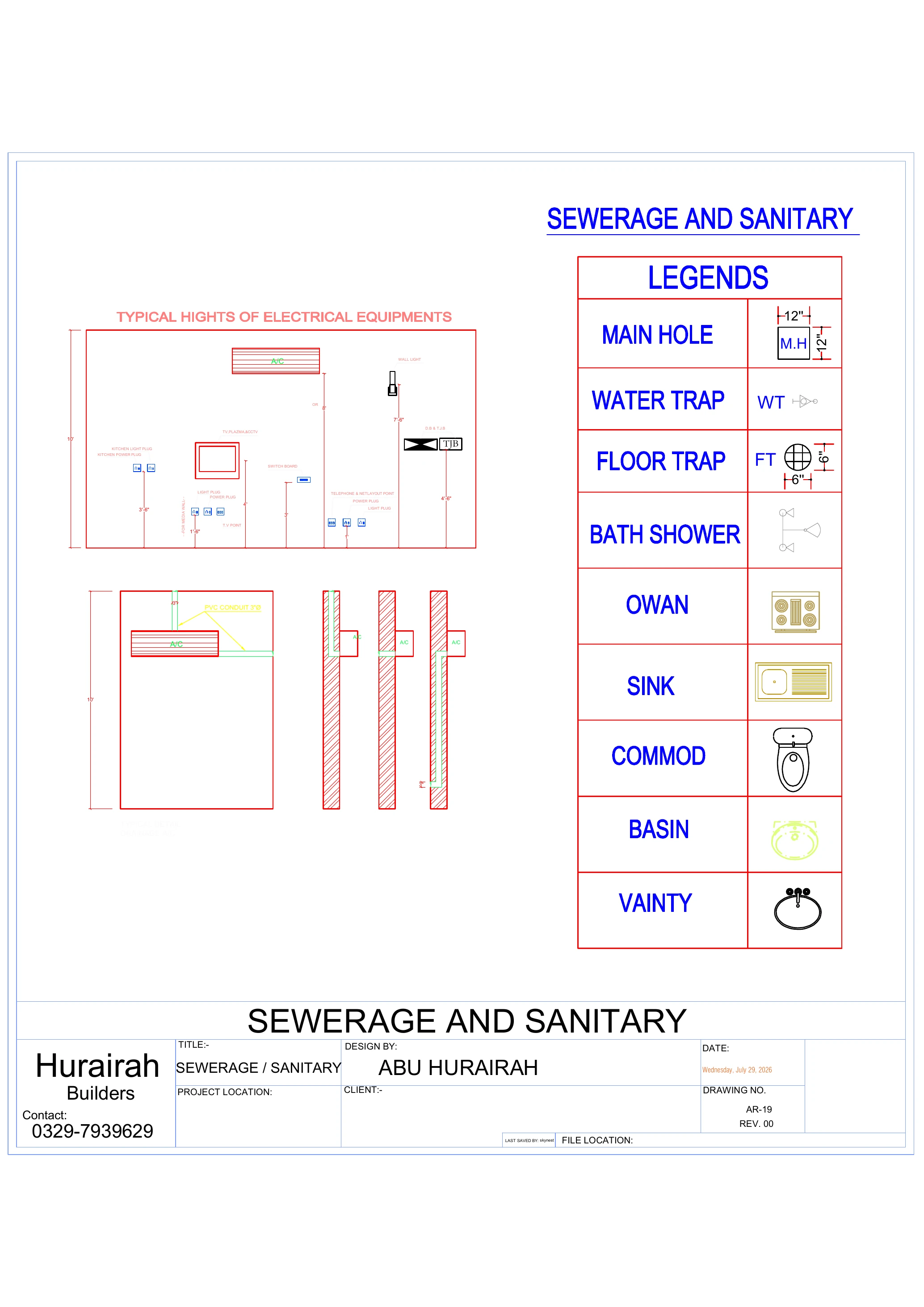

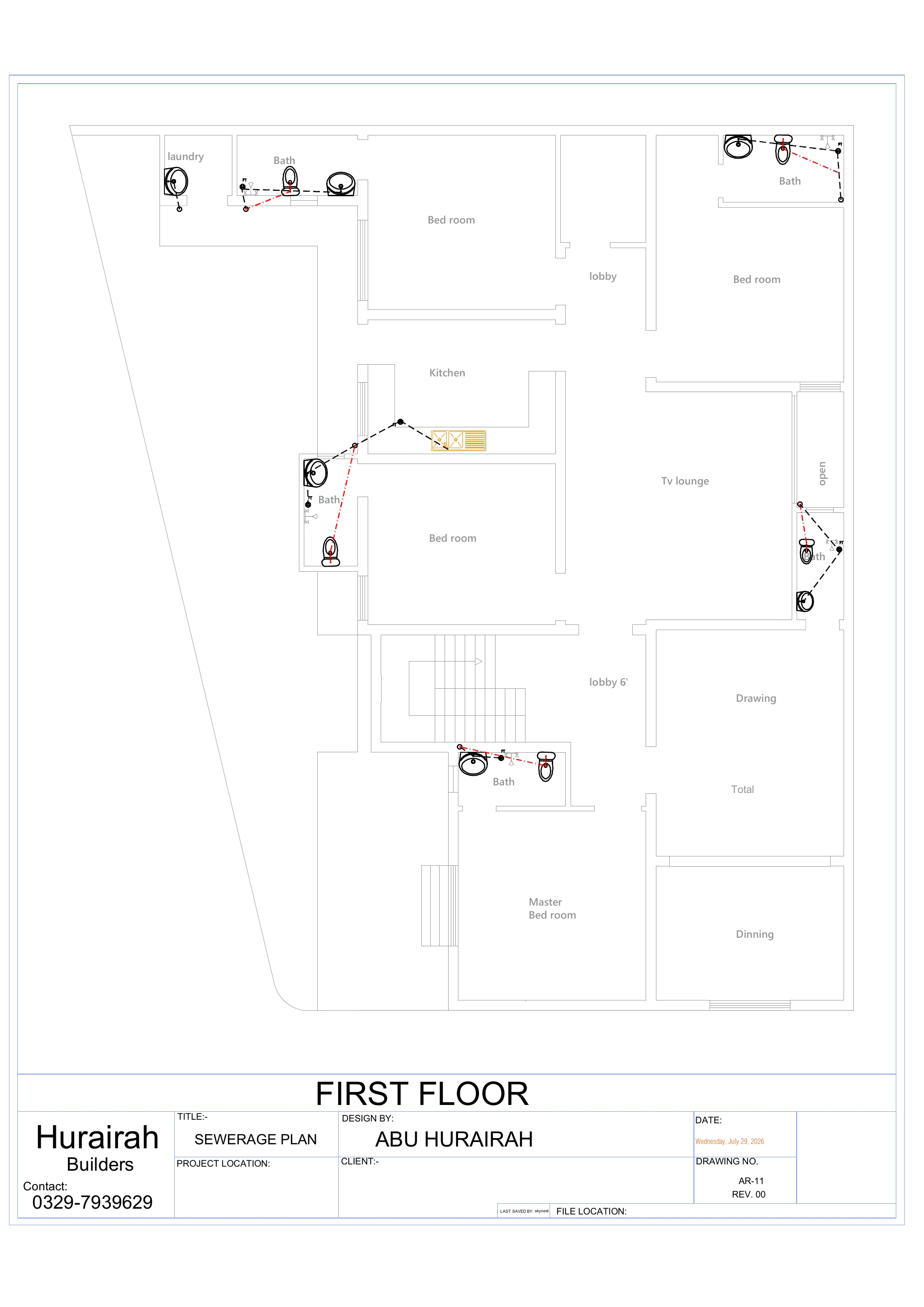

Electrical & plumbing6 drawings

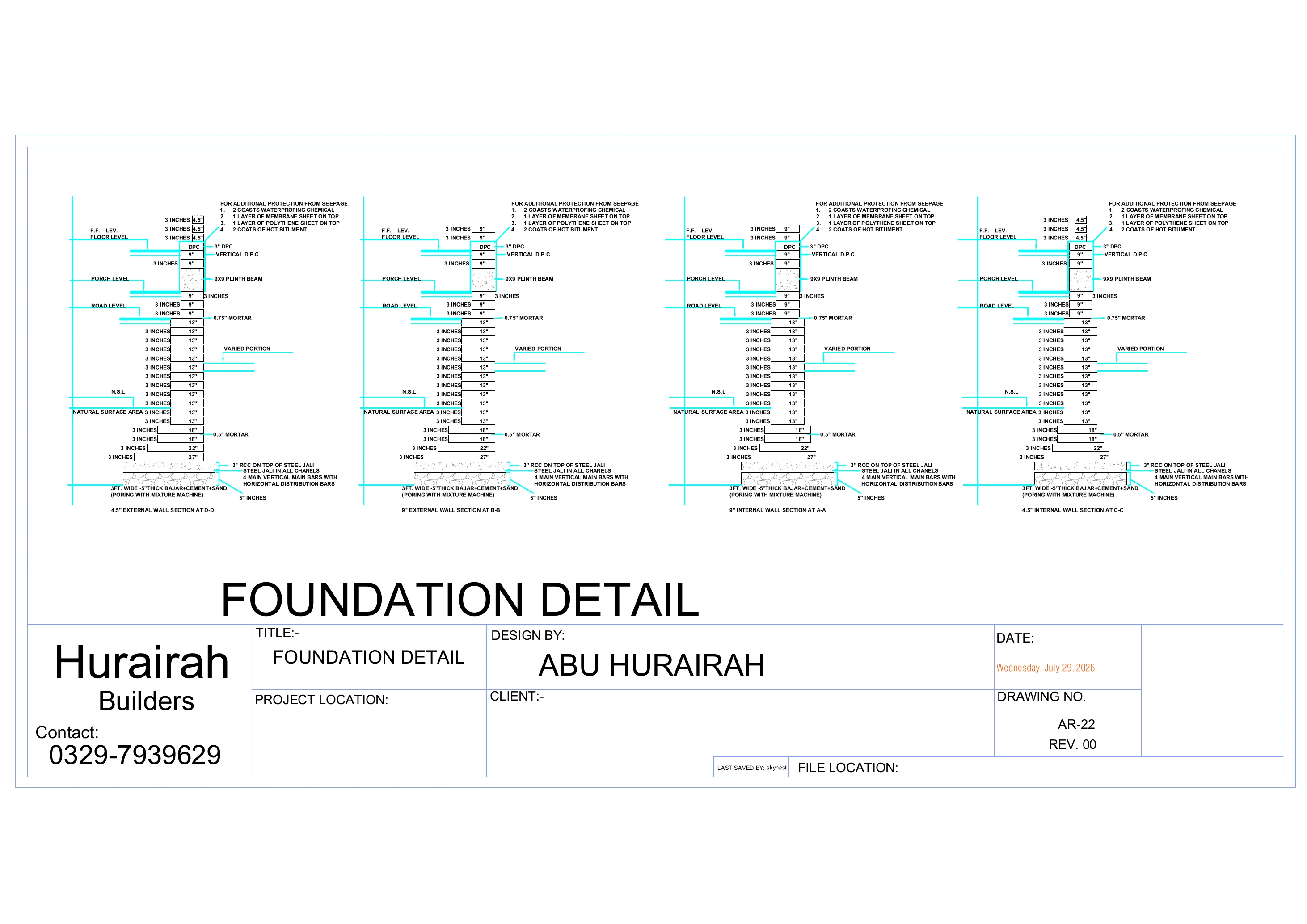

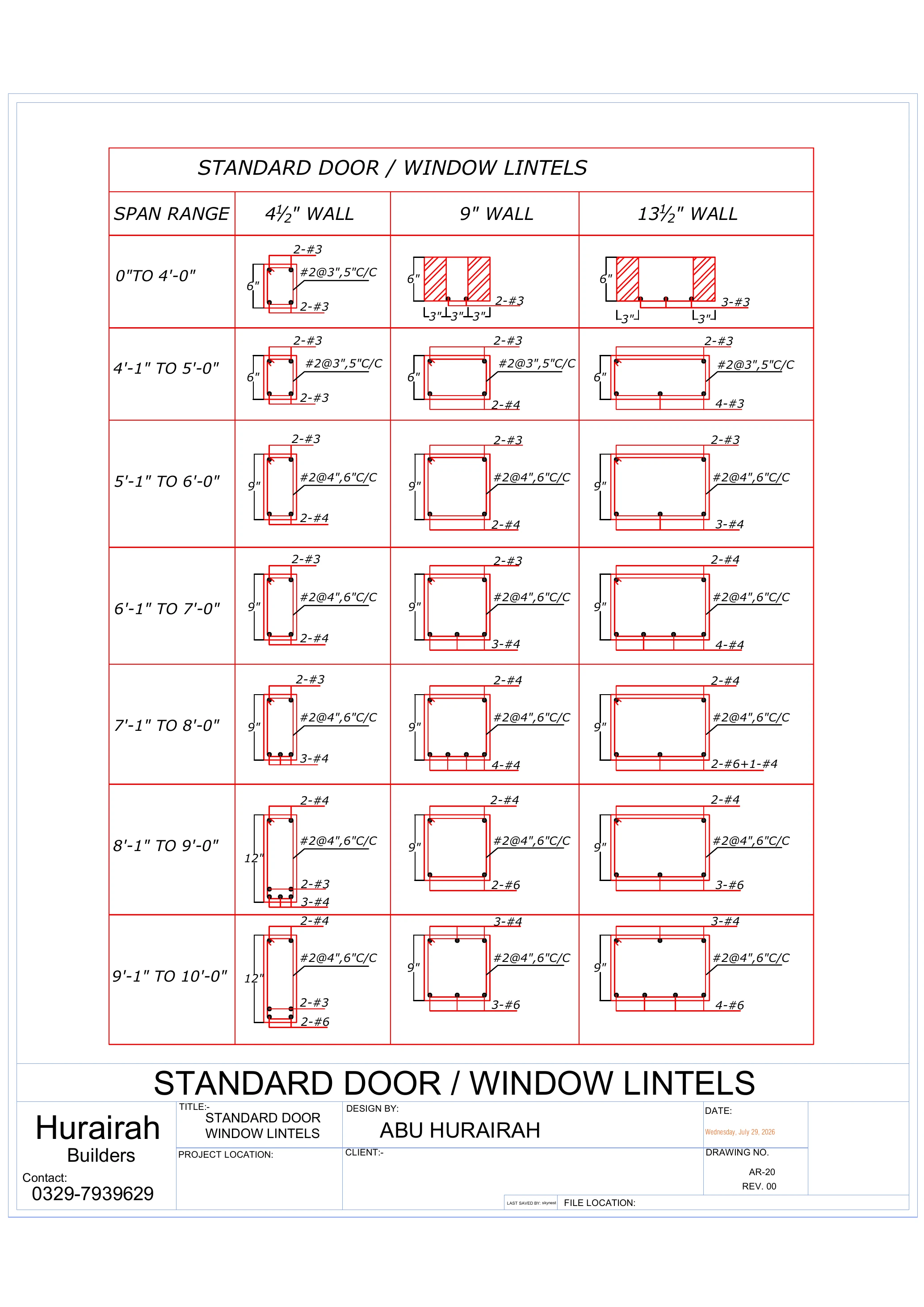

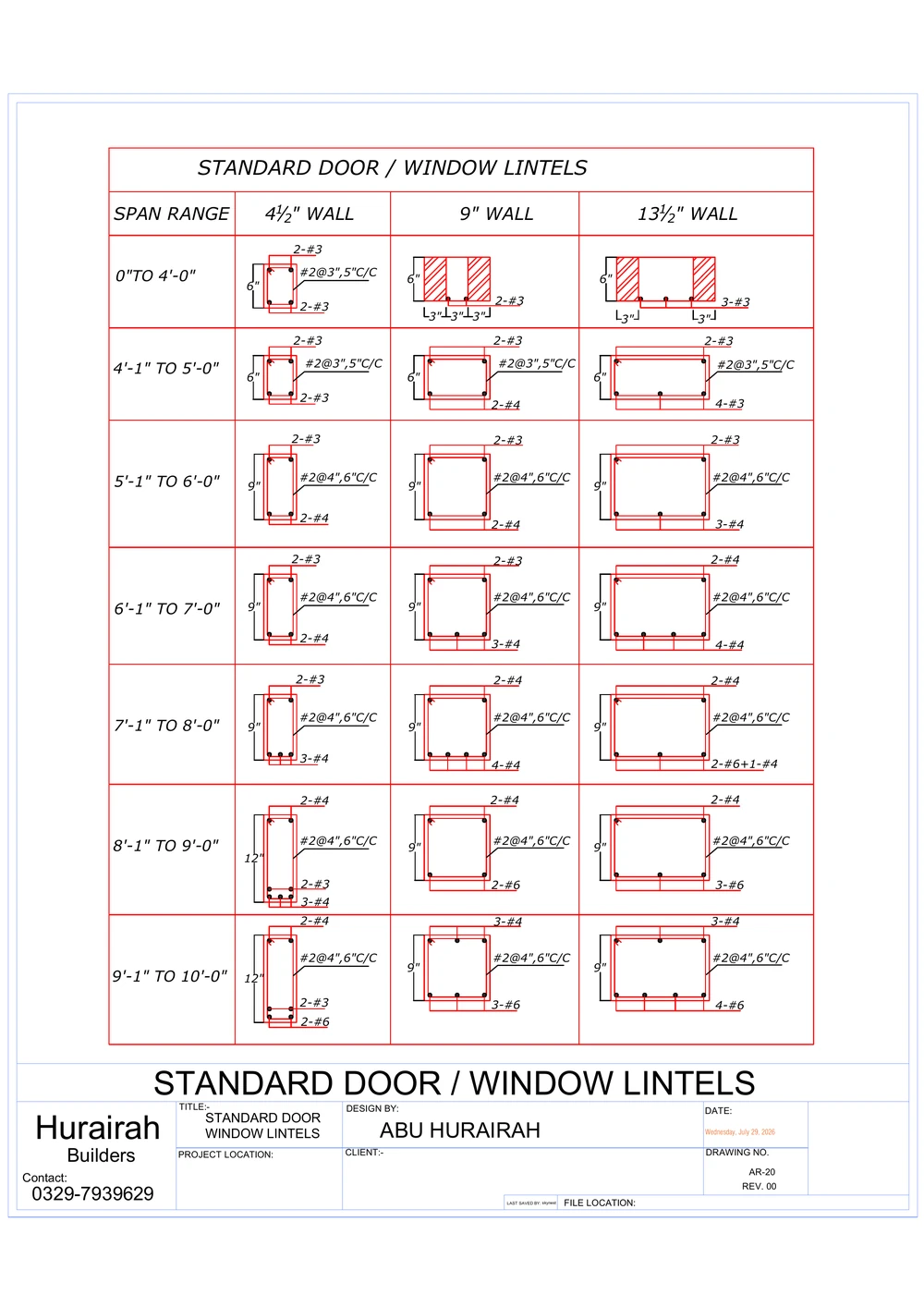

Structural & construction details4 drawings
Drawings and visualizations by Hurairah Builders (design by Abu Hurairah), reproduced as supplied, including their original title blocks and notices.
